Midland Industries MIDM 6901NWO2020

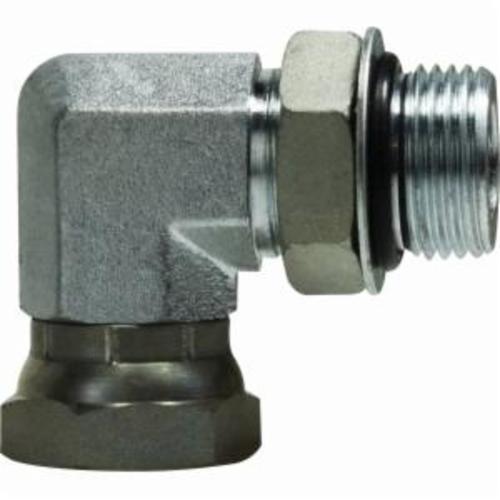

Midland Industries 6901NWO2020 Swivel Adapter, 1-5/8-12 x 1-1/4 in Nominal, Male O-Ring Boss x Female NPSM, Steel
Invoice description:
Adapter Swvl 1-5/8-12x1- 1/4in 90deg Midland Industries 6901nwo2020 Swivel Adapter, 1-5/8-12 X 1-1/4 In Nominal, Male O-ring Boss X Female Npsm, Steel
Factory Order
Midland Industries Swivel Adapter, 1-5/8-12 x 1-1/4 in Nominal, Male O-Ring Boss x Female NPSM, 90 deg, 1800 psi, Steel
Features
- O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
Specifications
Angle90 deg
End StyleMale O-Ring Boss x Female NPSM
MaterialSteel
Nominal Size1-5/8-12 x 1-1/4 in
Pressure Rating1800 psi
Additional Information
Standards/ApprovalSAE 140257
Country of OriginUS
