Midland Industries MIDM 6902NWO1212

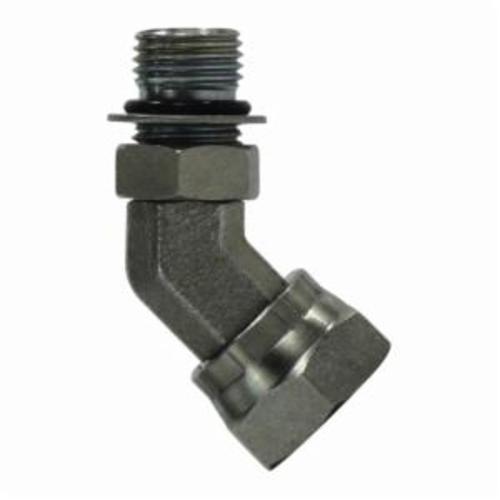

Midland Industries 6902NWO1212 Swivel Adapter, 1-1/16-12 x 3/4 in Nominal, Male O-Ring Boss x Female NPSM, Steel, Import
Invoice description:
Adapter Swvl 1-1/16-12x3 /4in 45deg Stl Midland Industries 6902nwo1212 Swivel Adapter, 1-1/16-12 X 3/4 In Nominal, Male O-ring Boss X Female Npsm, Steel, Domestic
Factory Order
Midland Industries Swivel Adapter, 1-1/16-12 x 3/4 in Nominal, Male O-Ring Boss x Female NPSM, 45 deg, 2900 psi, Steel, Import
Features
- O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
Specifications
Angle45 deg
Domestic/ImportImport
End StyleMale O-Ring Boss x Female NPSM
MaterialSteel
Nominal Size1-1/16-12 x 3/4 in
Pressure Rating2900 psi
Additional Information
Standards/ApprovalSAE 140357
Country of OriginUS
