MMM MIDM 944135

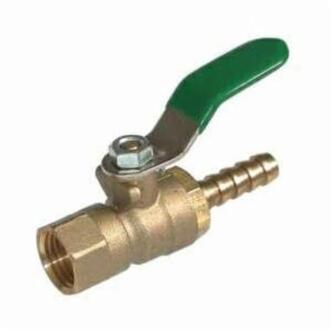

MMM 944135 Mini Ball Valve, 1/8 in Nominal, FIP x Barb End Style, Forged Brass Body, PVC/NBR Softgoods, Import

Invoice description: Valve Ball 1/8in Fipxbar B Fgd Brs Brs Mmm 944135 Mini Ball Valve, 1/8 In Nominal, Fip X Barb End Style, Forged Brass Body, Pvc/nbr Softgoods, Import

UNSPSC: 40141607
Manufacturer PN: 944135
Factory Order
--Price Unavailable--


MMM Ball Valve, Mini, 1/8 in Nominal, FIP x Barb, 200 psi WOG, 125 psi WSP, Media: Cold Water, Oil, Gas and Saturated Steam, Brass Ball, Forged Brass Body, Brass Stem, Ball Disc/PTFE Seat Trim, PVC/NBR, 1.78 in L, Import

  • Features

  • 180 deg operational handle
  • Generic handles
  • Stem with double O-Rings
  • Blow-out proof stem
  • Brass end plug, steel nut/handle
  • PVC cover and NBR O-Ring

Specifications

Ball MaterialBrass
Body MaterialForged Brass
Dimensions1.78 in L
Domestic/ImportImport
End StyleFIP x Barb
MediaCold Water, Oil, Gas and Saturated Steam
Nominal Size1/8 in
Pressure Rating200 psi WOG, 125 psi WSP
Softgoods MaterialPVC/NBR
Trim MaterialBrass Stem, Ball Disc/PTFE Seat
TypeMini

Additional Information

Country of OriginTW
