Midland Industries MIDM FS64021212

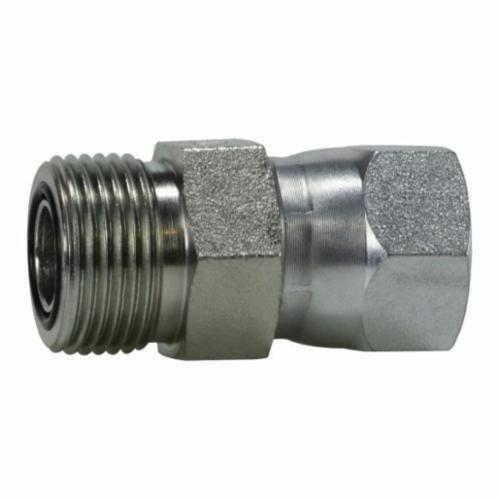

Midland Industries FS64021212 Hydraulic Swivel, 1-3/16-12 x 1-1/16-12 Nominal, Male ORFS x Female 37 deg JIC, Steel

Invoice description: Swivel Hc 1-3/16-12x1-1/ 16-12 6000psi Midland Industries Fs64021212 Hydraulic Swivel, 1-3/16-12 X 1-1/16-12 Nominal, Male Orfs X Female 37 Deg Jic, Steel

UNSPSC: 27121700
Manufacturer PN: FS64021212
$16.97 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Hydraulic Swivel, 1-3/16-12 x 1-1/16-12 Nominal, Male ORFS x Female 37 deg JIC, 6000 psi, Steel

  • Features

  • Sealing occurs when an o-ring is trapped in the groove by a smooth flat flange that is clamped against the face with a nut or nut and sleeve
  • O-Ring face seal fittings include a precision groove in the face of the male fitting, flat flange may be formed or brazed onto the end of a tube, or is machined on a fitting

Specifications

End StyleMale ORFS x Female 37 deg JIC
MaterialSteel
Nominal Size1-3/16-12 x 1-1/16-12
Pressure Rating6000 psi

Additional Information

Country of OriginUS
