Midland Industries MIDM FS650066

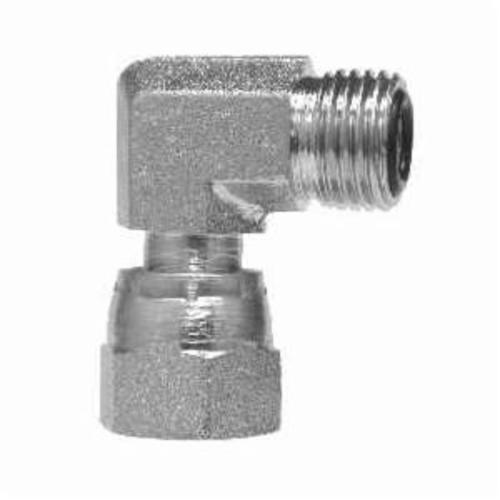

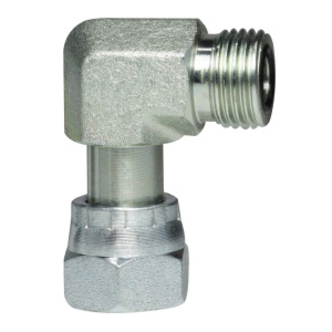

Midland Industries FS650066 Swivel Nut Elbow, 11/16-16 Nominal, Male ORFS x Female ORFS, Steel

Invoice description: Elbow Nut Swvl 11/16-16 Morfsxforfs Midland Industries Fs650066 Swivel Nut Elbow, 11/16-16 Nominal, Male Orfs X Female Orfs, Steel

UNSPSC: 27121705
Manufacturer PN: FS650066
$7.71 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Swivel Nut Elbow, 11/16-16 Nominal, Male ORFS x Female ORFS, 90 deg, 6000 psi, Steel

  • Features

  • Sealing occurs when an o-ring is trapped in the groove by a smooth flat flange that is clamped against the face with a nut or nut and sleeve
  • O-Ring face seal fittings include a precision groove in the face of the male fitting, flat flange may be formed or brazed onto the end of a tube, or is machined on a fitting

Specifications

Angle90 deg
End StyleMale ORFS x Female ORFS
MaterialSteel
Nominal Size11/16-16
Pressure Rating6000 psi

Additional Information

Country of OriginUS
