Midland Industries MIDM FSO24086

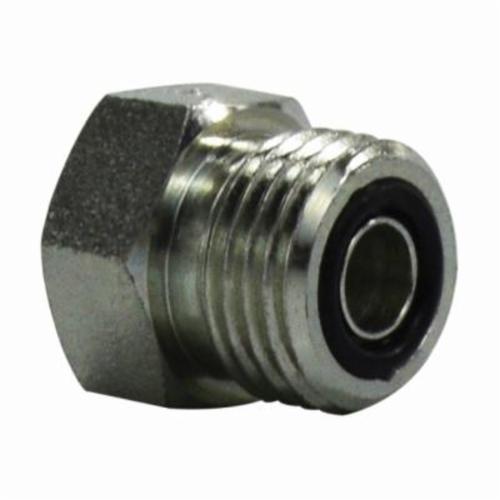

Midland Industries FSO24086 O-Ring Plug, 3/8 in x 11/16-16 Nominal, ORFS, Steel

Invoice description: Plug O-ring 3/8inx11/16- 16 Orfs Stl Midland Industries Fso24086 O-ring Plug, 3/8 In X 11/16-16 Nominal, Orfs, Steel

UNSPSC: 27121700

Manufacturer PN: FSO24086

Factory Order

--Price Unavailable--

Midland Industries O-Ring Plug, 3/8 in x 11/16-16 Nominal, ORFS, Steel

Features
O-ring face seal fittings include a precision groove in the face of the male fitting
Sealing occurs when an o-ring is trapped in the groove by a smooth flat flange that is clamped against the face with a nut or nut and sleeve
The flat flange may be formed or brazed onto the end of a tube, or is machined on a fitting
Two type SAE grooves are Type A the original style A o-ring has no retaining ledge, the type B groove has a retaining ledge (half dovetail) that improves o-ring retention
The type B style is more commonly found and is a design improvement over the type A
