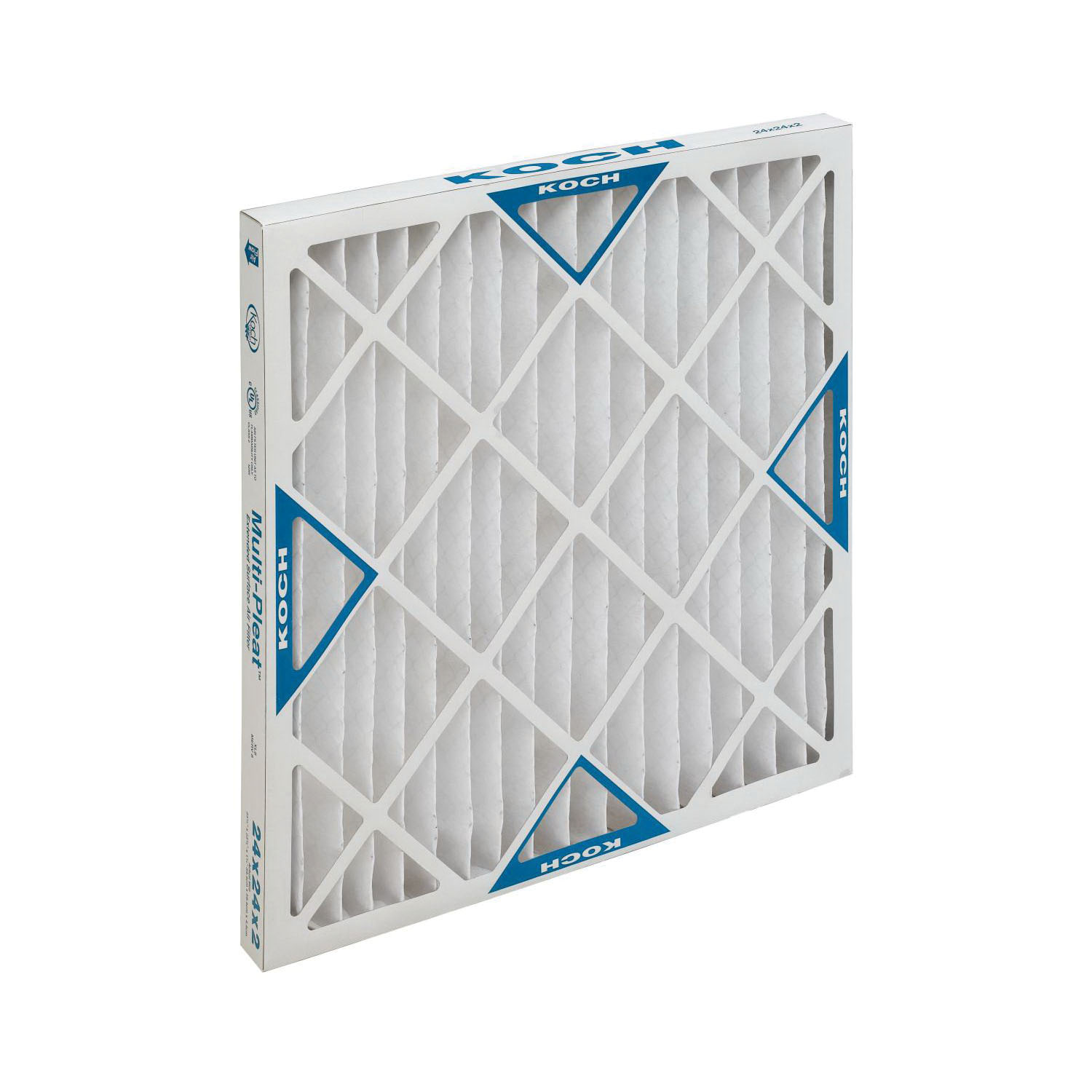

Koch Filter® KOCH 102-042-015

Koch Filter® Extended Surface Pleated Panel Filter, Series: Multi-Pleat XL8™ SC, 18 in Width, 2 in D, 20 in Height, MERV: 8, 750 to 1570 cfm, 200 deg F, Beverage Board Frame, 30 to 35% Efficiency, 0.14 to 0.34 in WG Initial Resistance, 1 in WG Final Resistance, 100% Synthetic Media, White, Domestic

• Features

• Upgrade from standard pleated filters
• Mechanical MERV 8 media is not reliant on electrostatic charge for efficiency
• Low resistance to airflow
• Moisture resistant beverage board frame maintains rigidity even in high humidity environments
• 100% mechanical media provides high efficiency, excellent dust holding capacity throughout the filter's lifecycle
• Rust resistant galvanized-dipped expanded metal support grid is totally laminated to media to insure even pleat spacing and structural support
• Pleats are bonded to frame to guarantee consistent pleat configuration and total media utilization
• Frame is double walled with reinforced corners to insure rigidity in the toughest applications
• Standard capacity XL8-SC filters provide a combination of efficiency, economy and excellent overall performance
• Standard capacity XL8 filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules

Specifications

Documents

• Specification Sheet
