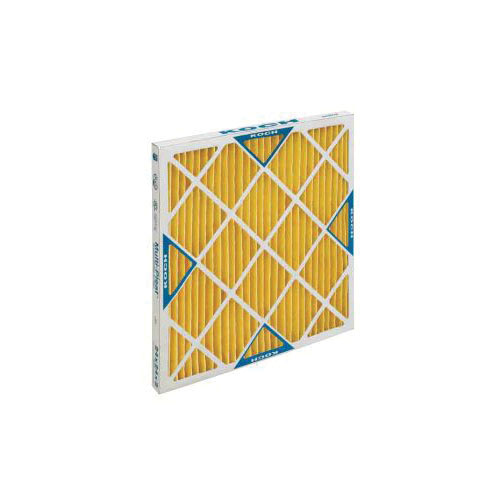

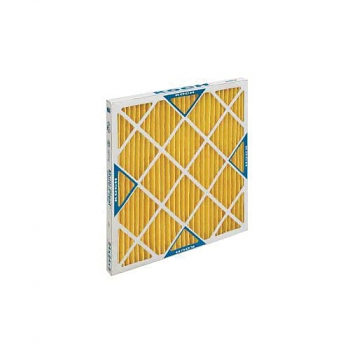

Koch Filter KOCH 102-499-017

Koch Filter Extended Surface Pleated Panel Filter, Series: Multi-Pleat XL11 SC, 16 in Width, 2 in D, 25 in Height, MERV: 11, 840 to 1740 cfm, 150 deg F, Paperboard Frame, 60 to 65% Efficiency, 0.14 to 0.51 in WG Initial Resistance, 1 in WG Final Resistance, 100% Synthetic Media, Yellow, Domestic

• Features

• Dual-layered filter media
• Low pressure drop
• Superior efficiency
• High dust holding capacity
• Multi-Pleat XL11 is produced with a highly specialized, dual layered 100% synthetic media, developed by Koch filter Corporation specifically for use in extended surface air filters
• New media is composed of an upstream electrostatically enhanced layer and a downstream mechanical layer
• Dual-layered construction of Multi-Pleat series XL11 overcomes a common problem found in single-layered electrostatically charged filters
• In filters produced with single-layer media, the effectiveness of the electrostatically charged media decreases over time as the filter becomes dirty and the charge dissipates
• Unique dual-layered media design of the Multi-Pleat XL11 greatly reduces this problem
• Effectiveness of the electrostatically enhanced E-layer decreases, the downstream mechanical M-layer takes over

Specifications

Documents

• Specification Sheet
