Power Team SPX C1010CBT

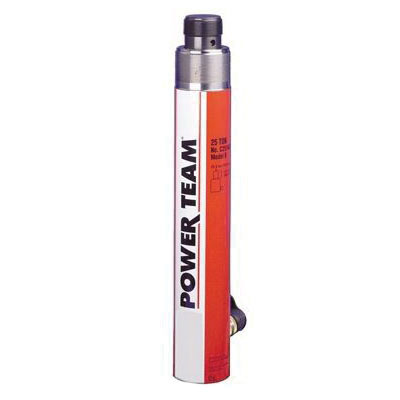

Power Team C1010CBT CBT Threaded End Spring-Return Single-Acting Hydraulic Cylinder, 10 ton Load, 15-1/2 in H Min, 25.63 in H Max, 10.13 in
Invoice description:
Cyl 10 Ton 101/8 Stroke K Cyl 10 Ton 101/8 Strokek
Factory Order
Power Team Hydraulic Cylinder, Threaded End Spring-Return Single-Acting, Series: CBT, 10 ton Load, 15-1/2 in Minimum Height, 25.63 in Maximum Height, 10.13 in Piston Stroke, 2-1/4 in Base Width
Features
- Threaded piston rod end and base threads accommodate accessories and adapters

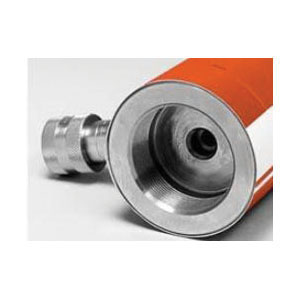

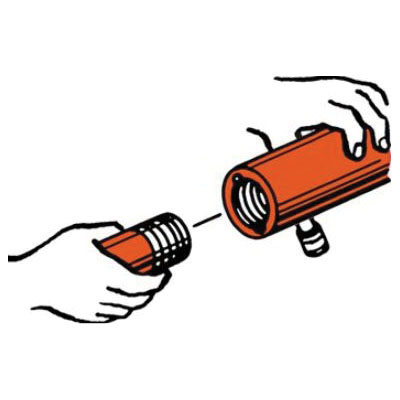

- Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting
- A 9796 3/8 in NPTF female half coupler is standard with each cylinder, oil port threads are 3/8 in NPTF
- Factory accessories are do not de-rate tonnage

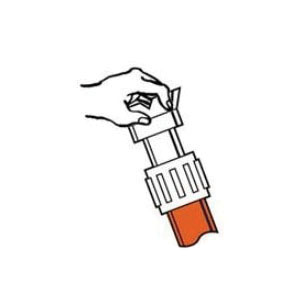

- Removable threaded rod cap
Specifications
Base Width2-1/4 in
Load Capacity10 ton
Maximum Height25.63 in
Minimum Height15-1/2 in
Piston Stroke10.13 in
SeriesCBT
TypeThreaded End Spring-Return Single-Acting
Additional Information
Standards/ApprovalANSI/ASME B30.1|CE Certified
Line Drawing
