Power Team SPX C55CBT

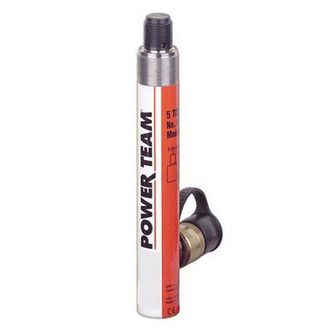

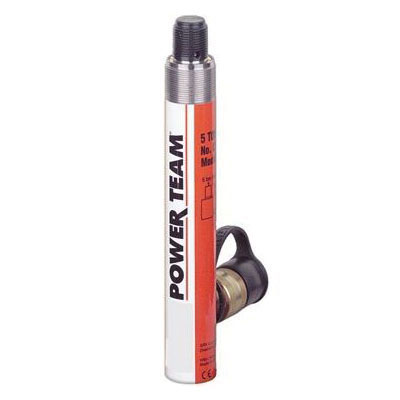

Power Team C55CBT CBT Threaded End Spring-Return Single-Acting Hydraulic Cylinder, 5 ton Load, 10-1/2 in H Min, 15-3/4 in H Max, 5-1/4 in
Invoice description:
Cyl 5 Ton 51/4 Stroke Cyl 5 Ton 51/4 Stroke
Factory Order
Power Team Hydraulic Cylinder, Threaded End Spring-Return Single-Acting, Series: CBT, 5 ton Load, 10-1/2 in Minimum Height, 15-3/4 in Maximum Height, 5-1/4 in Piston Stroke, 1-1/2 in Base Width
Features
- Threaded piston rod end and base threads accommodate accessories and adapters
- Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting
- A 9796 3/8 in NPTF female half coupler is standard with each cylinder, oil port threads are 3/8 in NPTF
- Factory accessories are do not de-rate tonnage
- Removable threaded rod cap
Specifications
Base Width1-1/2 in
Load Capacity5 ton
Maximum Height15-3/4 in
Minimum Height10-1/2 in
Piston Stroke5-1/4 in
SeriesCBT
TypeThreaded End Spring-Return Single-Acting
Additional Information
Standards/ApprovalANSI/ASME B30.1|CE Certified
Line Drawing
