Power Team SPX R1506C

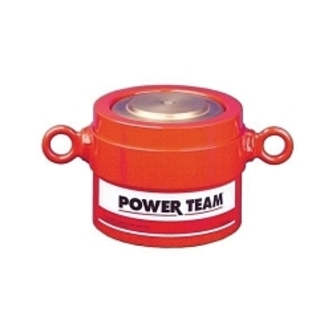

Power Team R1506C High Tonnage Hydraulic Cylinder, 6 in L Stroke, 150 ton Max Force, Single Acting/Load Return Function

Invoice description: Cyl 150 Ton 6 Stroke Cyl 150 Ton 6 Stroke

UPC: 662536282215
UNSPSC: 27121602
Manufacturer PN: R1506C
$6,222.87 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, High Tonnage, Series: R Series, 6 in Stroke Length, 150 ton Maximum Force, Function: Single Acting/Load Return, 5 deg Swivel, 30.68 sq-in Effective Area Clamped, 184.1 cu-in Oil Capacity Clamped, 16-3/8 in Extended Height, 10-3/8 in Retracted Height, 10000 psi Pressure, Alloy, 8.063 in OD Dimensions

  • Features

  • Visible indicator band alerts when stroke limit is reached, overflow port (weep hole) stroke limiter prevents piston from being over extended
  • Alloy heat treated piston and body for reliability and strength
  • Plated piston rod increases corrosion resistance and gives superior bearing support

Specifications

Dimensions8.063 in OD
Effective Area Clamped30.68 sq-in
Extended Height16-3/8 in
FunctionSingle Acting/Load Return
MaterialAlloy
Maximum Force150 ton
Oil Capacity Clamped184.1 cu-in
Pressure Rating10000 psi
Retracted Height10-3/8 in
SeriesR Series
Stroke Length6 in
Swivel Angle5 deg
TypeHigh Tonnage

Additional Information

Standards/ApprovalASME B30.1
