Power Team SPX RH1508

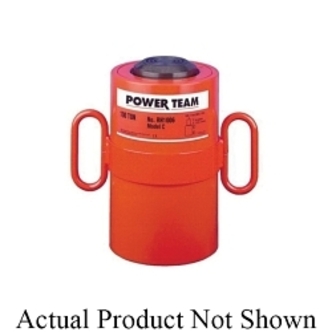

Power Team RH1508 Center Hole Hydraulic Cylinder, 8 in L Stroke, 150 ton Push/75 ton Pull Max Force, Double Acting Function

Invoice description: Cyl 150 Ton 8 Stroke Cyl 150 Ton 8 Stroke

UPC: 662536003025
UNSPSC: 27121602
Manufacturer PN: RH1508
$17,733.45 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Center Hole, Series: RH Series, 8 in Stroke Length, 150 ton Push/75 ton Pull Maximum Force, Function: Double Acting, 29.95 sq-in Effective Area Clamped, 15.9 sq-in Effective Area Unclamped, 239.6 cu-in Oil Capacity Clamped, 127.2 cu-in Oil Capacity Unclamped, 21-3/4 in Extended Height, 13-3/4 in Retracted Height, 10000 psi Pressure, 9-3/4 in OD Dimensions

  • Features

  • Interchangeable piston head inserts provide versatility of application
  • Built-in safety feature prevents over pressurization of the retract circuit
  • Plated piston rod resists wear, superior packings provide high cycle life without leakage
  • Corrosion resistant standpipe has Power Tech treatment
  • Each cylinder has 9796 3/8 in NPTF female half couplers, the 60 ton thru 200 ton steel models are equipped with removable carrying handle

Specifications

ApplicationFor pulling and tensioning of cables, anchor bolts and forcing screws
Dimensions9-3/4 in OD
Effective Area Clamped29.95 sq-in
Effective Area Unclamped15.9 sq-in
Extended Height21-3/4 in
FunctionDouble Acting
Maximum Force150 ton Push/75 ton Pull
Oil Capacity Clamped239.6 cu-in
Oil Capacity Unclamped127.2 cu-in
Pressure Rating10000 psi
Retracted Height13-3/4 in
SeriesRH Series
Stroke Length8 in
TypeCenter Hole

Additional Information

Standards/ApprovalASME B30.1
