Power Team SPX RH6010
Power Team RH6010 RH Series Center Hole Push/Pull Double-Acting Hydraulic Cylinder, 60 ton Push/40 ton Pull Load, 18-1/16 in H Min, 28-3/16 in H Max, 10-1/8 in
Invoice description:
Cyl 60 Ton 101/8 Stroke K Cyl 60 Ton 101/8 Strokek
Factory Order
Power Team Hydraulic Cylinder, Center Hole Push/Pull Double-Acting, Series: RH Series, 60 ton Push/40 ton Pull Load, 18-1/16 in Minimum Height, 28-3/16 in Maximum Height, 10-1/8 in Piston Stroke, 6-1/4 in Base Width
Features
- Interchangeable piston head inserts provide versatility of application
- 30, 60, 100 ton double-acting models feature threaded collar
- Built-in safety feature prevents over pressurization of the retract circuit
- Plated piston rod resists wear, superior packings provide high cycle life without leakage
- Corrosion-resistant standpipe has power tech treatment
Specifications

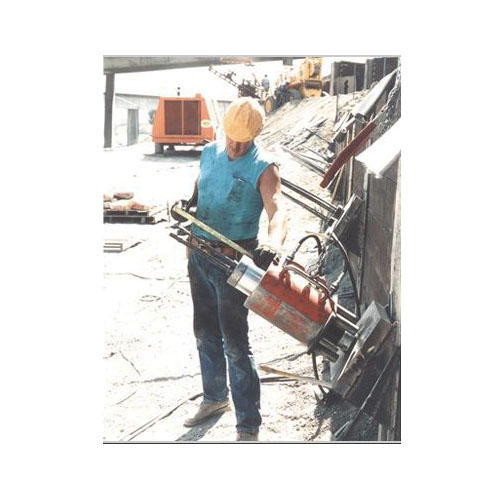

ApplicationPulling and Tensioning of Cables, Anchor Bolts and Forcing Screws
Base Width6-1/4 in
Load Capacity60 ton Push/40 ton Pull
Maximum Height28-3/16 in
Minimum Height18-1/16 in
Piston Stroke10-1/8 in
SeriesRH Series
TypeCenter Hole Push/Pull Double-Acting
Additional Information
IncludesModel 9796 3/8 in NPTF Female Half Coupler, Removable Carrying Handle
Standards/ApprovalASME B30.1|CE Certified
Instruction/installation Manual
