Power Team SPX RT1004

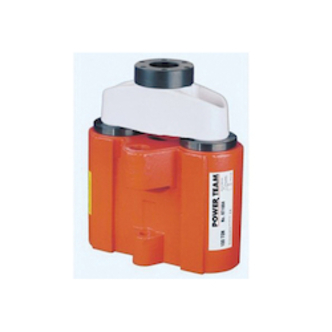

Power Team RT1004 Center Hole Hydraulic Cylinder, 4-7/8 in L Stroke, 100 ton Max Force, Single Acting/Double Acting/Spring Return Function

Invoice description: Cyl 100 Ton 4 7/8 Strok E Cyl 100 Ton 4 7/8 Stroke

UPC: 662536003605
UNSPSC: 27121602
Manufacturer PN: RT1004
$10,441.79 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Center Hole, Series: RT Series, 4-7/8 in Stroke Length, 100 ton Maximum Force, Function: Single Acting/Double Acting/Spring Return, 19.24 sq-in Effective Area Clamped, 96.5 cu-in Oil Capacity Clamped, 63.2 cu-in Oil Capacity Unclamped, 20 in Extended Height, 15-1/8 in Retracted Height, 10000 psi Pressure, 10-1/2 in OD Dimensions

  • Features

  • The RT1004 has a bypass when full stroke is reached, preventing over pressurization of the cylinder
  • A proven design used throughout industry for over 45 years
  • Cylinders withstand full dead end loads
  • Compact design, ideal for applications in which space is limited
  • Basic head can be changed from a tapped hole to plain hole by simply changing insert
  • Pistons have Power-Tech treatment for corrosion and abrasion resistance

Specifications

Dimensions10-1/2 in OD
Effective Area Clamped19.24 sq-in
Extended Height20 in
FunctionSingle Acting/Double Acting/Spring Return
Maximum Force100 ton
Oil Capacity Clamped96.5 cu-in
Oil Capacity Unclamped63.2 cu-in
Pressure Rating10000 psi
Retracted Height15-1/8 in
SeriesRT Series
Stroke Length4-7/8 in
TypeCenter Hole
