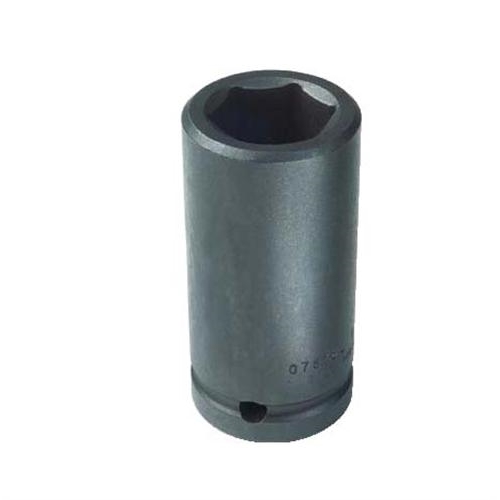

Proto PRO J07517L

Proto TorquePlus Socket, Deep Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 1-1/16 in Socket, 3-1/4 in Overall Length, 7/8 in Opening Depth, 1-5/8 in Drive End Width, 1-5/8 in Socket End Width, Side Locking Hole Locking, 6 Points, 2-5/16 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

• Features

• The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
• Stamped size for easy reference
• Specially heat treated for the correct balance of strength and durability
• Concentric openings
• Large clearance holes
• Tight nut end tolerances
• Made from high alloy steel for greater strength

Specifications

Documents

• Video Link

• Catalog
