3M 3MT 7000132170

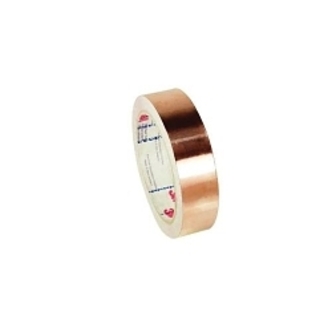

3M 7000132170 1181 Log Roll Shielding Tape, 18 yd L x 2 in W, 1.4 mil THK, Acrylic Adhesive, Copper Foil Backing

Invoice description: Tape Copperfoil Shieldng 3/emi/1181/2in X18yd Tape Copper Foil Shielding 3//emi/1181/2in X18yd/ (50/80 Mm X 16.5 M)/ 5 Per Case

UPC: 054007274704

UNSPSC: 31201502

Manufacturer PN: 7000132170

^$233.43 EA

In stock (3)

enlarge

Product Overview

3M, 7000132170, Shielding Tape, Log Roll, Series: 1181, 18 yd Length, 2 in Width, 1.4 mil Thickness, 3 in Diameter Core, Acrylic Adhesive, Copper Foil Backing, 25 in-oz Adhesion Strength, 600 V, 80 deg F Maximum Operating, 50 deg F Minimum Operating, Specifications Met: ASTM D1000, UL 510A, Category OARC2, File No. E17385

Features
Dead soft 1 oz (1.4 mil) copper foil backing for good shielding effectiveness, soldering and converting (slitting and die cutting)
UL recognized flame retardancy per UL 510 for applications needing this property
Conductive particles in the adhesive provides low contact resistance between the substrate and the backing to drain static charge
Acrylic pressure sensitive adhesive has good resistance to heat, oxidation, solvents and oils
Removable liner makes it easy to handle and die cut complex shapes
There are both standard and custom roll widths and lengths to meet a variety of application needs
Unique adhesive creates secure contact with the application surface
Flame-retardant

Specifications

ApplicationFor EMI/RFI shielding applications in the electronics industry and for static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials

Adhesion Strength25 in-oz

Adhesive MaterialAcrylic

Backing MaterialCopper Foil

ColorCopper

Core Diameter3 in

Length18 yd

Maximum Operating Temperature80 deg F

Minimum Operating Temperature50 deg F

Series1181

Specifications MetASTM D1000, UL 510A, Category OARC2, File No. E17385

Thickness1.4 mil

TypeLog Roll
