3M 3MT 27551

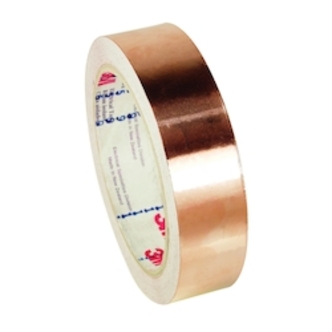

3M 7000132182 1181 Shielding Tape, 18 yd L x 1/2 in W, 2.6 mil THK, Acrylic Adhesive, Copper Foil Backing

Invoice description: Tape Copper Foil Emi 3m Shielding /1181 Tape Copper Foil Emi 3m Shielding /1181/1/2 In X 18 Yd (12.70 Mm X 16.5 M)/ 18/case

UPC: 054007275510

UNSPSC: 31201502

Manufacturer PN: 7000132182

^$53.04 EACH

In stock (3)

enlarge

Product Overview

3M, 7000132182, Shielding Tape, Series: 1181, 18 yd Length, 1/2 in Width, 2.6 mil Thickness, 3 in Diameter Core, Acrylic Adhesive, Copper Foil Backing, 35 in-oz Adhesion Strength, 600 V, 130 deg C Maximum Operating, -40 deg C Minimum Operating, Specifications Met: ASTM D1000/D3759/D3330/D4935

Features
Unique adhesive creates secure contact with the application surface
Flame-retardant
Dead soft 1 oz (1.4 mil) copper foil backing for good shielding effectiveness, soldering and converting (slitting and die cutting)
UL recognized flame retardancy per UL 510 for applications needing this property
Conductive particles in the adhesive provides low contact resistance between the substrate and the backing to drain static charge
Acrylic pressure sensitive adhesive has good resistance to heat, oxidation, solvents and oils
Removable liner makes it easy to handle and die cut complex shapes
There are both standard and custom roll widths and lengths to meet a variety of application needs

Specifications

ApplicationFor applications in the electronics industry such as static charge draining, grounding, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials and EMI shielding, grounding and static charge draining

Adhesion Strength35 in-oz

Adhesive MaterialAcrylic

Backing MaterialCopper Foil

ColorCopper

Core Diameter3 in

Length18 yd

Maximum Operating Temperature130 deg C

Minimum Operating Temperature-40 deg C

Series1181

Specifications MetASTM D1000/D3759/D3330/D4935

Thickness2.6 mil

TypeLog Roll
