Proto PRO J5576

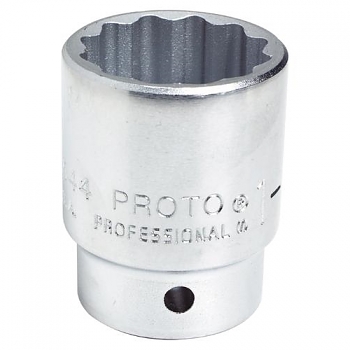

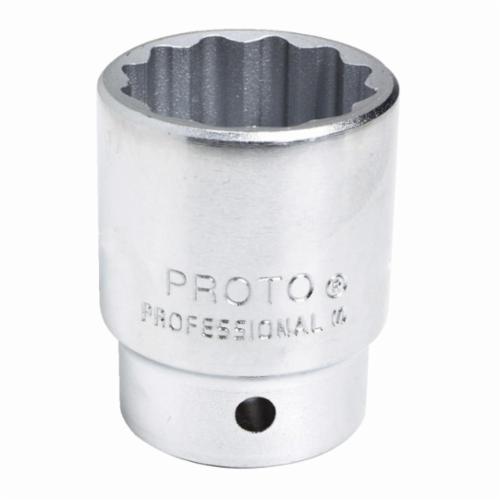

Proto TorquePlus J5576 Standard Length Socket, Imperial, 3/4 in Square Drive, 2-3/8 in

UPC: 662679200596
UNSPSC:
Manufacturer PN: J5576
$104.38 EA
Factory Order
Estimated to ship in 10 days
QTY:


Proto TorquePlus Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 2-3/8 in Socket, 3-43/64 in Overall Length, 2-1/8 in Opening Depth, 2-29/64 in Drive End Width, 3-17/64 in Socket End Width, Ball Locking, 12 Points, 2-3/16 in Bolt Clearance Depth, Alloy Steel, Satin

  • Features

  • The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
  • Ball detent design
  • Side locking hole
  • TorquePlus design allows more torque to be put on the fastener while reducing fastener
ApplicationFor use on stubborn or damaged fasteners and also on fasteners made from soft materials
