Harvey Tool HARV 939378-C3

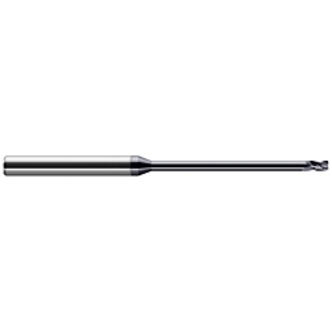

Harvey Tool 939378-C3 Stub Length Long Reach Miniature End Mill, 0.078 in Dia Cutter, 1/64 in Corner Radius, 0.117 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN
Invoice description:
Em 5/64x.117x1/8x2-1/2 1/64r 1-3/16lbs 3fl
Manufacturer PN: 939378-C3
Factory Order
--Price Unavailable--
Harvey Tool, 939378-C3, Miniature End Mill, Stub Length Long Reach, 0.078 in Diameter Cutter, 1/64 in Corner Radius, 2-1/2 in Overall Length, 0.117 in Length of Cut, 3 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
Features
- Long length design for deep cavities, up to 8 in overall length
- Corner radius for improved strength
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Overall Reach 1.1870 in (1-3/16)
- Reach Multiple (15x)
Specifications
Corner Radius1/64 in
Cutter Diameter0.078 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeUpcut
Helix Angle30 deg
Length of Cut0.117 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeStub Length Long Reach
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
