Harvey Tool HARV 968978-C6

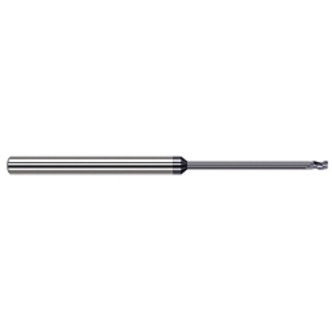

Harvey Tool 968978-C6 Variable Helix End Mill, 0.078 in Dia Cutter, 0.01 in Corner Radius, 0.118 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN Nano
Invoice description:
Em 5/64x.118x1/8x2-1/2 .01r 3fl 1-3/16lbs
Manufacturer PN: 968978-C6
Factory Order
--Price Unavailable--
Harvey Tool, 968978-C6, Variable Helix End Mill, 0.078 in Diameter Cutter, 0.01 in Corner Radius, 2-1/2 in Overall Length, 0.118 in Length of Cut, 3 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 34 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN Nano
Features
- Reduced neck diameter to avoid heeling
- Variable helix design (approx. 34) reduces chatter and harmonics and increases material removal rates
- Corner radius available for improved strength
- Latest generation coating offers superior hardness and heat resistance
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Overall Reach 1.1870 in (1-3/16)
- Reach Multiple (15x)
Specifications
ApplicationSuitable for steels up to 45Rc
Corner Radius0.01 in
Cutter Diameter0.078 in
Cutting DirectionRight Hand
FinishAlTiN Nano
Flute TypeUpcut
Helix Angle34 deg
Length of Cut0.118 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length Variable Helix
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
