Sandvik Coromant SANC 5727895

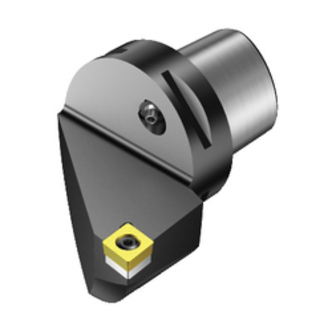

Sandvik Coromant 5727895 CoroTurn 107 Modular Turning Cutting Unit, C4 System, 50 mm L Head/Projection, Right Hand Cutting, Insert Compatibility: CCMT 120408, 74 mm OAL, External
Invoice description:
Hldr 107 Cutting Unit C4-sclcr-27050-12
Factory Order
Sandvik Coromant Turning Cutting Unit, Modular, Series: CoroTurn 107, System Size: C4, 50 mm Head Length/Projection, 74 mm Overall Length, CCMT Insert, Insert Compatibility: CCMT 120408, Right Hand Cutting Direction, 27 mm Center to Cutting Edge, Screw Clamp Insert Holding Method, External, Steel
Features
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
Specifications
ApplicationLongitudinal Turning, Profiling, Boring Holes and Facing
Center to Cutting Edge27 mm
Cutting DirectionRight Hand
Head Length/Projection50 mm
Insert CompatibilityCCMT 120408
Insert Holding MethodScrew Clamp
Insert StyleCCMT
Internal or ExternalExternal
MaterialSteel
Overall Length74 mm
SeriesCoroTurn 107
System SizeC4
TypeModular
Additional Information
Includes5762483 Shim, 5763048 Shim Screw, 5763131 Screw, 5764133 Key and 5764297 Nozzle
Country of OriginSE
