MMM MIDM 18124B

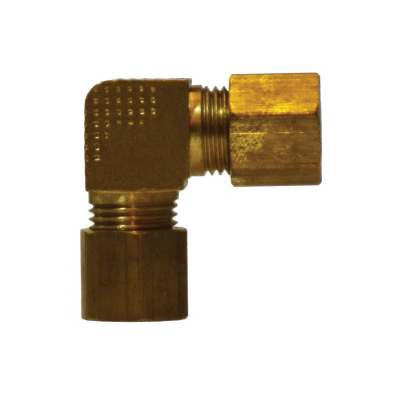

MMM 18124B 90 deg Union Elbow, 1/4 in Nominal, Compression End Style, CA360 Brass
Invoice description:
Elbow Un 90 Deg Elb 1/4i N Compression Midland Industries 18124b 90 Deg Union Elbow, 1/4 In Nominal, Compression End Style, Ca360 Brass
Factory Order
MMM Union Elbow, 90 deg Elbow Fitting/Connector, 1/4 in Nominal, Compression End Style, 300 psi Pressure, -65 to 250 deg F, CA360 Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- Barstock
- 0.48 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Fitting/Connector Ty 90 deg Elbow
Nominal Size 1/4 in
End Style Compression
Pressure Rating 300 psi
Additional Information
Standards/ApprovalASA|ASME and SAE 060201
Country of OriginUS
