MMM MIDM 20344

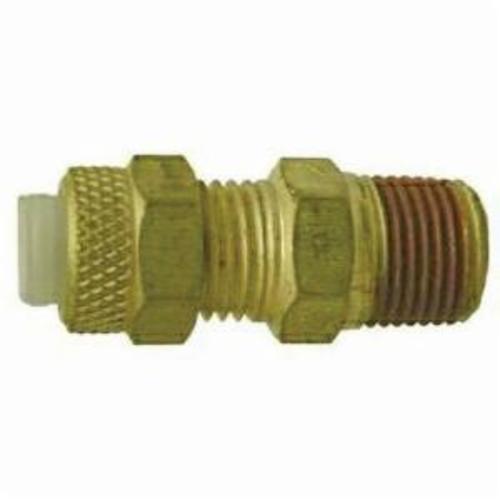

MMM 20344 Quick-Disconnect Tube-to-Pipe Adapter, 1/4 x 1/8 in, Flareless x MIP, CA360 Brass
Invoice description:
Adapter Tube-to-pipe 1/4 X1/8in 0.44in Midland Industries 20344 Quick-disconnect Tube-to-pipe Adapter, 1/4 X 1/8 In, Flareless X Mip, Ca360 Brass
Factory Order
MMM Tube-to-Pipe Adapter, Quick-Disconnect, Adapter, 1/4 x 1/8 in Nominal, Flareless x MIP, 0.44 in Hex, 0 to 150 psi, 0 to 150 deg F, CA360 Brass
Features
- Excellent vibration resistance
- /- 0.02 tolerance on all dimensions
- Easy installation, captive sleeve, pre-assembled for installation and can be reassembled
- Nuts rotate around the sleeve during tightening, preventing twisting of tubing
- Flaring of tubing not required
Specifications
ApplicationPneumatic Instrumentation Circuits, Lubricant, Cooling Lines, Aluminum and Copper Tubing
Type Quick-Disconnect
Fitting/Connector Ty Adapter
Nominal Size 1/4 x 1/8 in
End Style Flareless x MIP
Hex Size 0.44 in
Pressure Rating 0 to 150 psi
Additional Information
Country of OriginUS
