MMM MIDM 46516

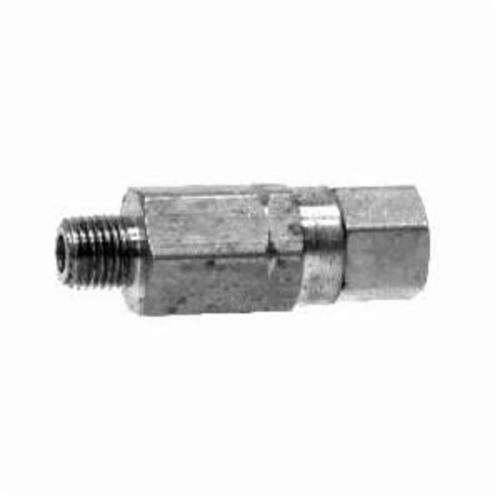

MMM 46516 High Pressure Check Valve, 1/4 in Nominal, MIP x FIP End Style, 4 gpm at 10 psi Water Flow Rate, Brass Body

Invoice description: Valve Check 1/4in Mipxfi P Brs 3000psi Midland Industries 46516 High Pressure Check Valve, 1/4 In Nominal, Mip X Fip End Style, 4 Gpm At 10 Psi Water Flow Rate, Brass Body

UNSPSC: 40173500
Manufacturer PN: 46516
$47.31 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Check Valve, High Pressure, 1/4 in Nominal Size, MIP x FIP, 3000 psi, 180 deg F, 4 gpm at 10 psi Water, Media: Air/Water, Brass Body, Buna-N® Seal

  • Features

  • Operates in any position
  • Fixed ringed seat prevents extrusion of seal
  • Approximate 1.2 Cv
  • 0.28 in opening diameter
  • 316 stainless steel ball and spring
  • Cracking Pressure: 1 psi

Specifications

Type High Pressure
Nominal Size 1/4 in
End Style MIP x FIP
Pressure Rating 3000 psi
Temperature Rating 180 deg F
Flow Rate 4 gpm at 10 psi Water

Additional Information

Country of OriginUS
