MMM MIDM 46519

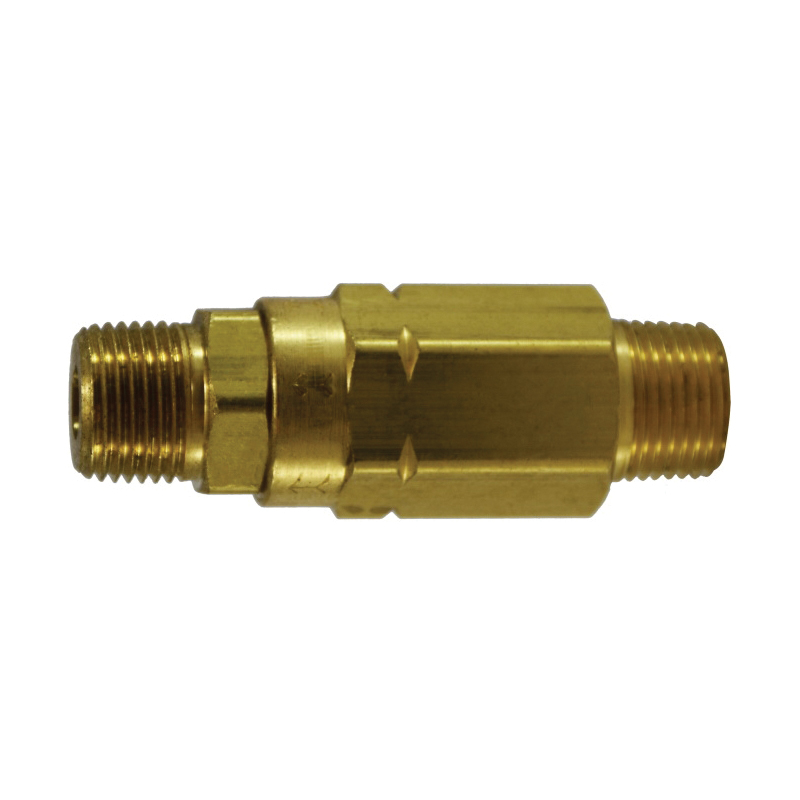

MMM 46519 High Pressure Check Valve, 3/8 in Nominal, MIP End Style, 4 gpm at 10 psi Water Flow Rate, Brass Body

Invoice description: Valve Check 3/8in Mip Br S 3000psi Hp Midland Industries 46519 High Pressure Check Valve, 3/8 In Nominal, Mip End Style, 4 Gpm At 10 Psi Water Flow Rate, Brass Body

UNSPSC: 40173500
Manufacturer PN: 46519
$53.38 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Check Valve, High Pressure, 3/8 in Nominal Size, MIP, 3000 psi, 180 deg F, 4 gpm at 10 psi Water, Media: Air/Water, Brass Body, Buna-N® Seal

  • Features

  • Operates in any position
  • Fixed ringed seat prevents extrusion of seal
  • Approximate 1.2 Cv
  • 0.28 in opening diameter
  • 316 stainless steel ball and spring
  • Cracking Pressure: 1 psi

Specifications

Type High Pressure
Nominal Size 3/8 in
End Style MIP
Pressure Rating 3000 psi
Temperature Rating 180 deg F
Flow Rate 4 gpm at 10 psi Water

Additional Information

Country of OriginCN
