MMM MIDM 46781

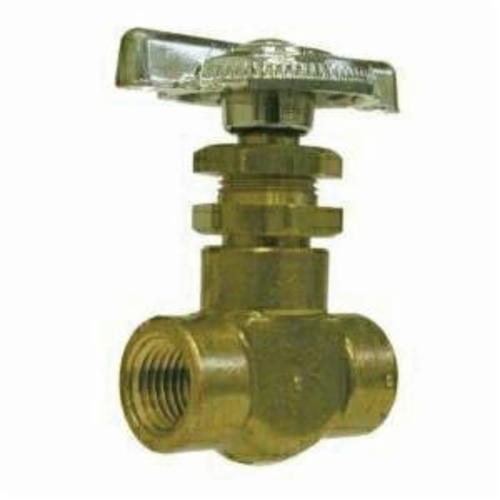

MMM 46781 Panel Shut-Off Needle Valves, 1/8 in, FIP x FIP Straight, Forged Brass Body
Invoice description:
Valves Ndl Shut-off 1/8i N Fip X Fip Str Midland Industries 46781 Panel Shut-off Needle Valves, 1/8 In, Fip X Fip Straight, Forged Brass Body
Factory Order
MMM Shut-Off Needle Valves, Panel, 1/8 in Nominal, FIP x FIP Straight, 1000 psi, -40 to 250 deg F, Forged Brass Body, Brass Trim, Buna-N® O-Ring
Features
- Needle valves are constructed to meter fluids and Gases
- Needle valves have a medium tipped stem (37 deg) to offer rapid shut-off, full flow and a semi- metering function
- O-Ring is positioned between the actuating threads and the seat, and seals the closely fitted cylinder to give the lowest possible internal volume and protect threads from contamination
- 0.172 maximum orifice
- Brass thrust washer
Specifications
Type Panel
Nominal Size 1/8 in
End Style FIP x FIP Straight
Pressure Rating 1000 psi
Temperature Rating -40 to 250 deg F
Additional Information
Country of OriginUS
