MMM MIDM 59084

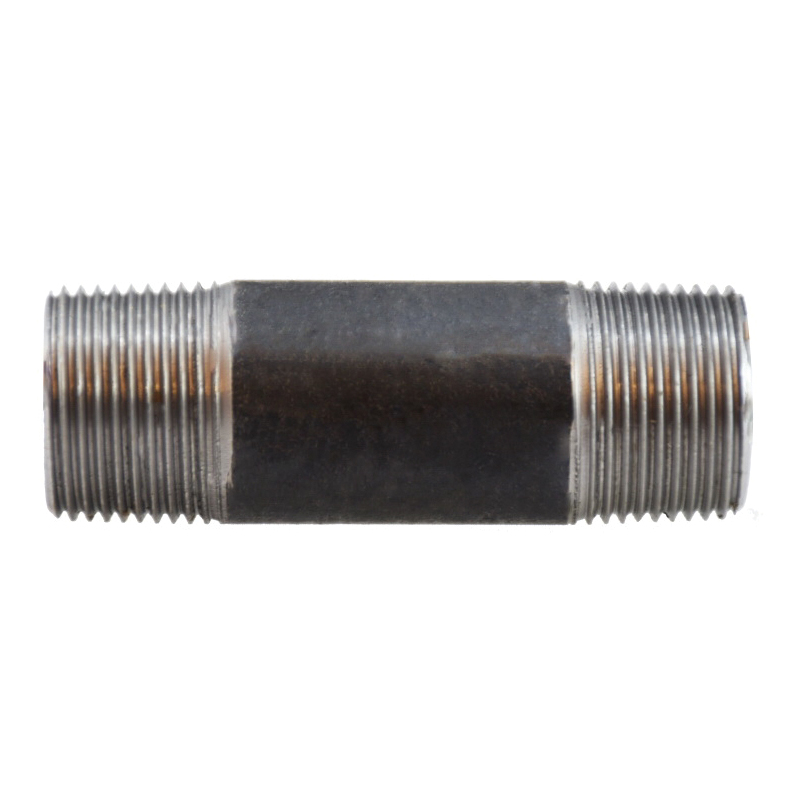

MMM 59084 Extra Heavy Pipe Nipple, 3/4 in x 3 in L NPT, ASTM A-733/A-53 Type F or Type E Steel, Black Oxide, SCH 80/XH, Welded, Import
Invoice description:
Nipple Pipe 3/4in Npt 3i N Bk Sch Mmm 59084 Extra Heavy Pipe Nipple, 3/4 In X 3 In L Npt, Steel, Black, Sch 80/xh, Welded, Import
Factory Order
MMM Pipe Nipple, Extra Heavy, 3/4 in Nominal, NPT, 3 in Length, SCH 80/XH, -200 to 150 deg, Welded, ASTM A-733/A-53 Type F or Type E Steel, Black Oxide, Import
Features
- 0.154 in Wall Thickness
- All pipe is hydrostatic tested
- Steel and wrought iron welded
- Protected against oxidation with varnish coating
- 0.742 in ID x 1.05 in OD
- All pipe is roller cut, a visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut
- 33.7 kg/sq-mm at 48000 psi, 20 kg/sq-mm at 28500 psi tensile strength
- Pipe lengths are cut to a tolerance of + or - 1/16 in of the actual length
- All pipe is chaser thread cut to American standard tapered pipe thread standards
- This is 3/4 in taper per foot
Specifications
Type Extra Heavy
Nominal Size 3/4 in
End Style NPT
Length 3 in
Schedule Rating SCH 80/XH
Temperature Rating -200 to 150 deg F
Method of Manufactur Welded
Material ASTM A-733/A-53 Type F or Type E Steel
Additional Information
Standards/ApprovalASME B1.20.1|ANSI B36.1
Country of OriginCN
