MMM MIDM 949184

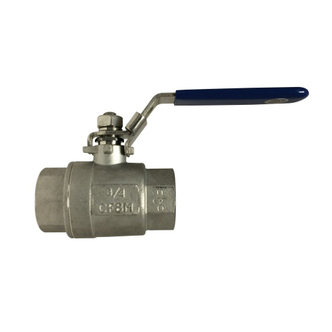

MMM 949184 2-Piece Ball Valve, 3/4 in Nominal, CF8/CFM8M 316 Stainless Steel Body, Full Port, PTFE Joint Gasket/Thrust Washer Stem Packing Softgoods, Import
Invoice description:
Valve Ball 3/4in Cf8/cfm 8m 316 Sst Full Mmm 949184 2-piece Ball Valve, 3/4 In Nominal, Cf8/cfm8m 316 Stainless Steel Body, Full Port, Ptfe Joint Gasket/thrust Washer Stem Packing Softgoods, Import
Factory Order
MMM Ball Valve, 2-Piece, 3/4 in Nominal, 1000 psi WOG, 125 psi WSP, -60 to 450 deg F, Full Port, Media: Water, Oil, Gas and Saturated Steam, CFM8M 316 Stainless Steel Ball, CF8/CFM8M 316 Stainless Steel Body, 316 Stainless Steel Stem/PTFE Ball Seat/PVC Sleeve Trim, PTFE Joint Gasket/Thrust Washer Stem Packing, 2.05 in H x 2.56 in W, Import
Features
- Investment casting body
- Adjustable stem packing
- Blow-out proof stem and safe pressure-reducing hole
- 1500 psi hydrostatic test pressure
- Locking handle with blue generic sleeve
- 100% leakage tested at 100 psi air under water
- Valves will accept a pad-lock on the handle
- 304 stainless steel gland nut/stem nut/spring washer
- PTFE joint gasket and thrust washer stem packing
Specifications
Type 2-Piece
Nominal Size 3/4 in
Pressure Rating 1000 psi WOG, 125 psi WSP
Temperature Rating -60 to 450 deg F
Port Type Full
Media Water, Oil, Gas and Saturated Steam
Additional Information
Standards/ApprovalDIN 1.4408
Country of OriginCN
