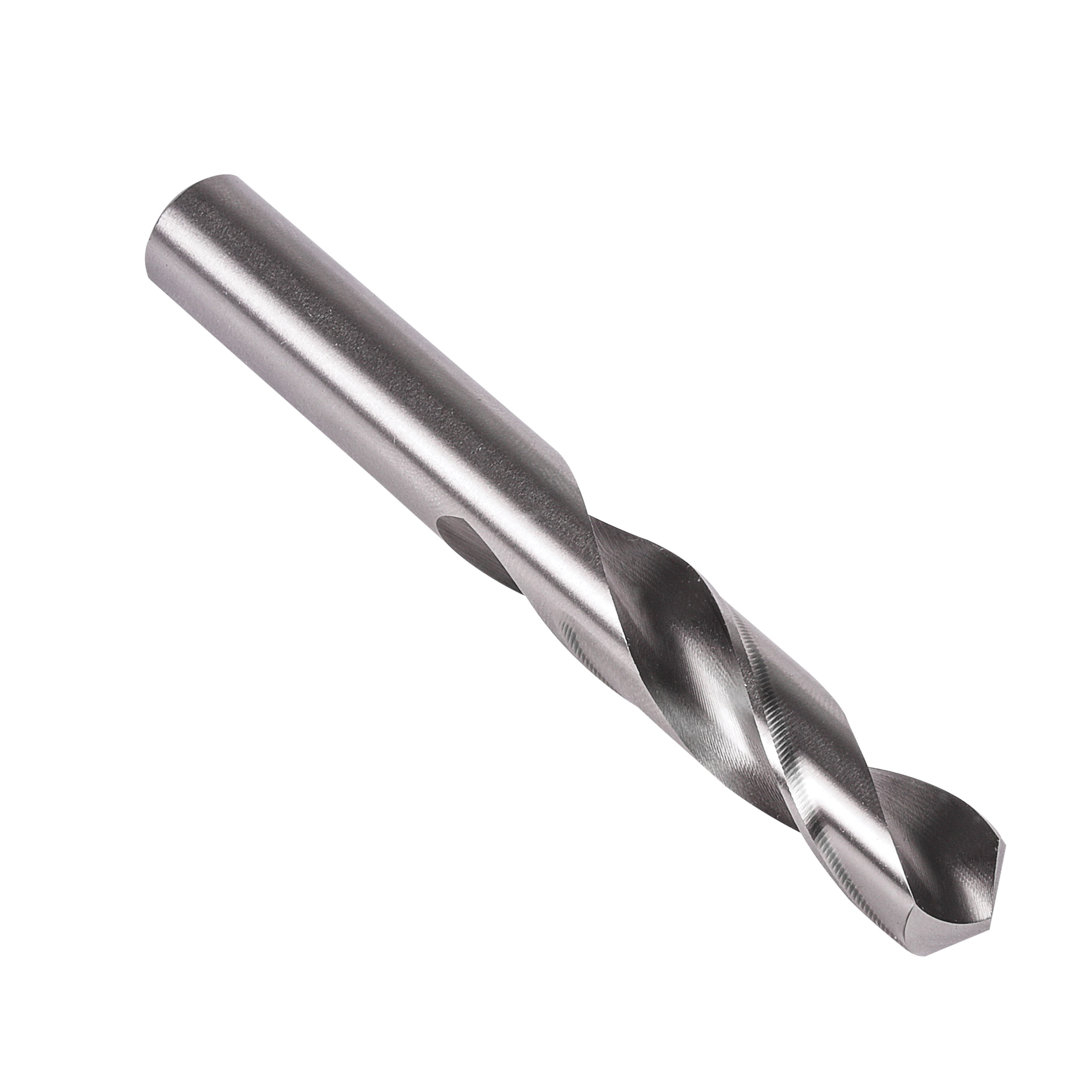

Precision Twist Drill UTD 040018

Precision Twist Drill 040018 R40 General Purpose Screw Machine Drill, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, HSS, Bright

UPC: 086071400185
UNSPSC: 23241606
Manufacturer PN: 040018
$5.10 EA
In stock (12)
QTY:


Precision Twist Drill Screw Machine Drill, General Purpose, Series: R40, Imperial, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 2-11/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-1/2 in Flute Length, 0.281 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Alloy Steel, Brass, Bronze, Copper, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Hardened and Tempered Steel, Magnetic Soft Steel, Nickel, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium

  • Features

  • Bright finish improves chip flow in soft or non-ferrous materials

Specifications

ApplicationFor general drilling applications
Type General Purpose
Series R40
Drill Diameter Measu Imperial
Drill Size - Fractio 9/32 in
Drill Size - Decimal 0.2812 in
Overall Length 2-11/16 in
Cutting Depth 2.5XD
