Precision Twist Drill UTD 042815

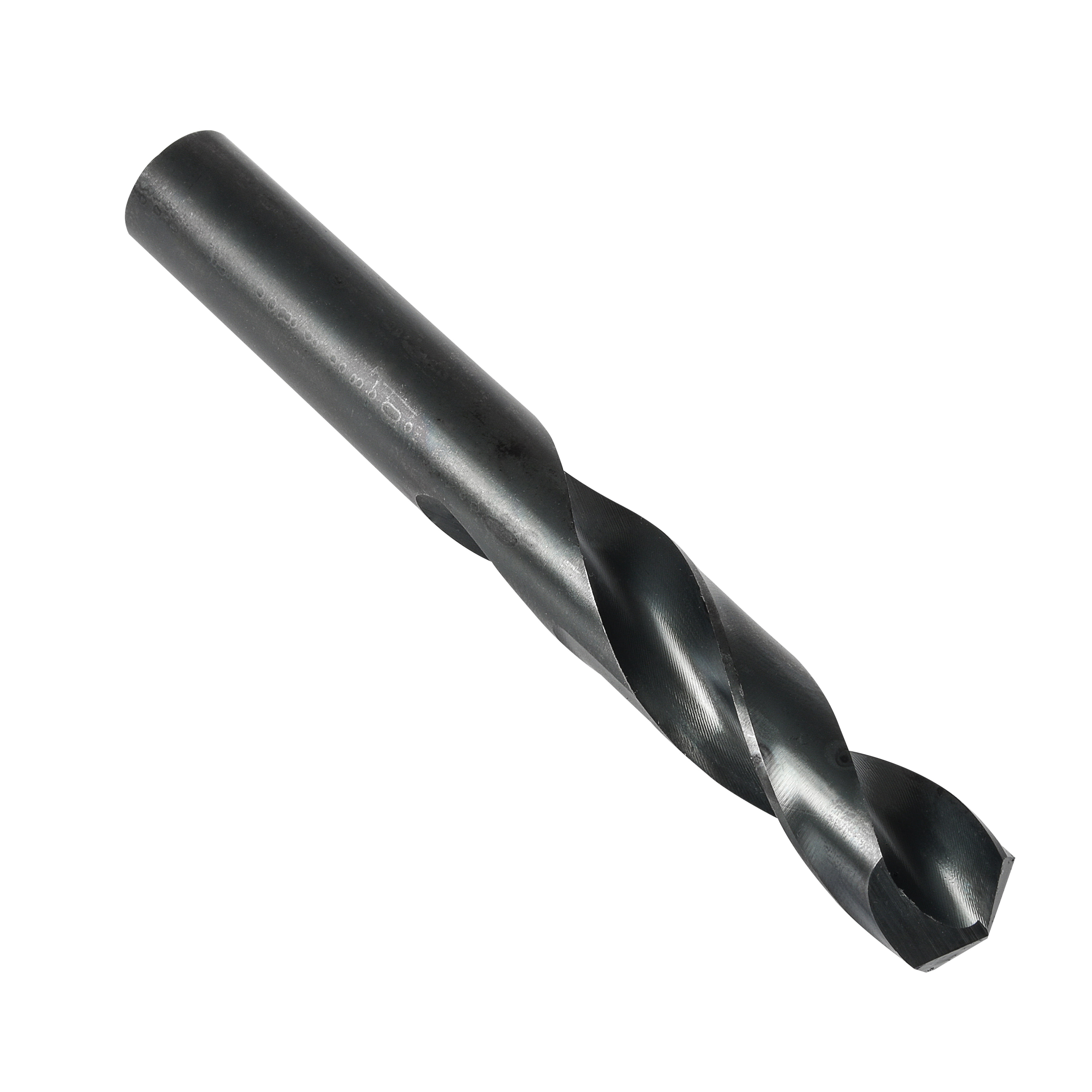

Precision Twist Drill 5999402 R42C General Purpose Stub Length Drill, O Drill - Letter, 0.316 in Drill - Decimal Inch, HSS, Steam Tempered
Invoice description:
O Hd Scr Mach Drl R42c Hss Stm Ox 135d A012 Hss Jobber Drills T In Tip Ansi A012 29/64 5999402
UPC: 086071428158
UNSPSC:
23241606
Manufacturer PN: 5999402
$10.79 EA
Factory OrderEstimated to ship in 7 days
Precision Twist Drill Stub Length Drill, General Purpose, Series: R42C, Imperial, O Drill - Letter, 0.316 in Drill - Decimal Inch, 2-15/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-11/16 in Flute Length, 0.3161 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
Features
- Low thrust design self-centering split point for easier penetration
- Steam oxide surface treatment for increased wear resistance and lubricity
Specifications
ApplicationFor machining operations in screw machines
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
ColorDark Gray
Cutting Depth2.5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.316 in
Drill Size - LetterO
FinishSteam Tempered
Flute Length1-11/16 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length2-15/16 in
Point Angle135 deg
Point TypeSplit/Self-Centering
SeriesR42C
Shank Size0.3161 in
Shank TypeStraight
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|NAS 907 Type C|CSA Approved
Country of OriginBR
