Precision Twist Drill UTD 051316

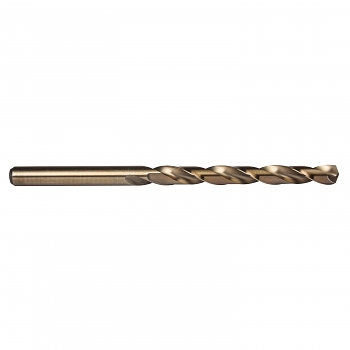

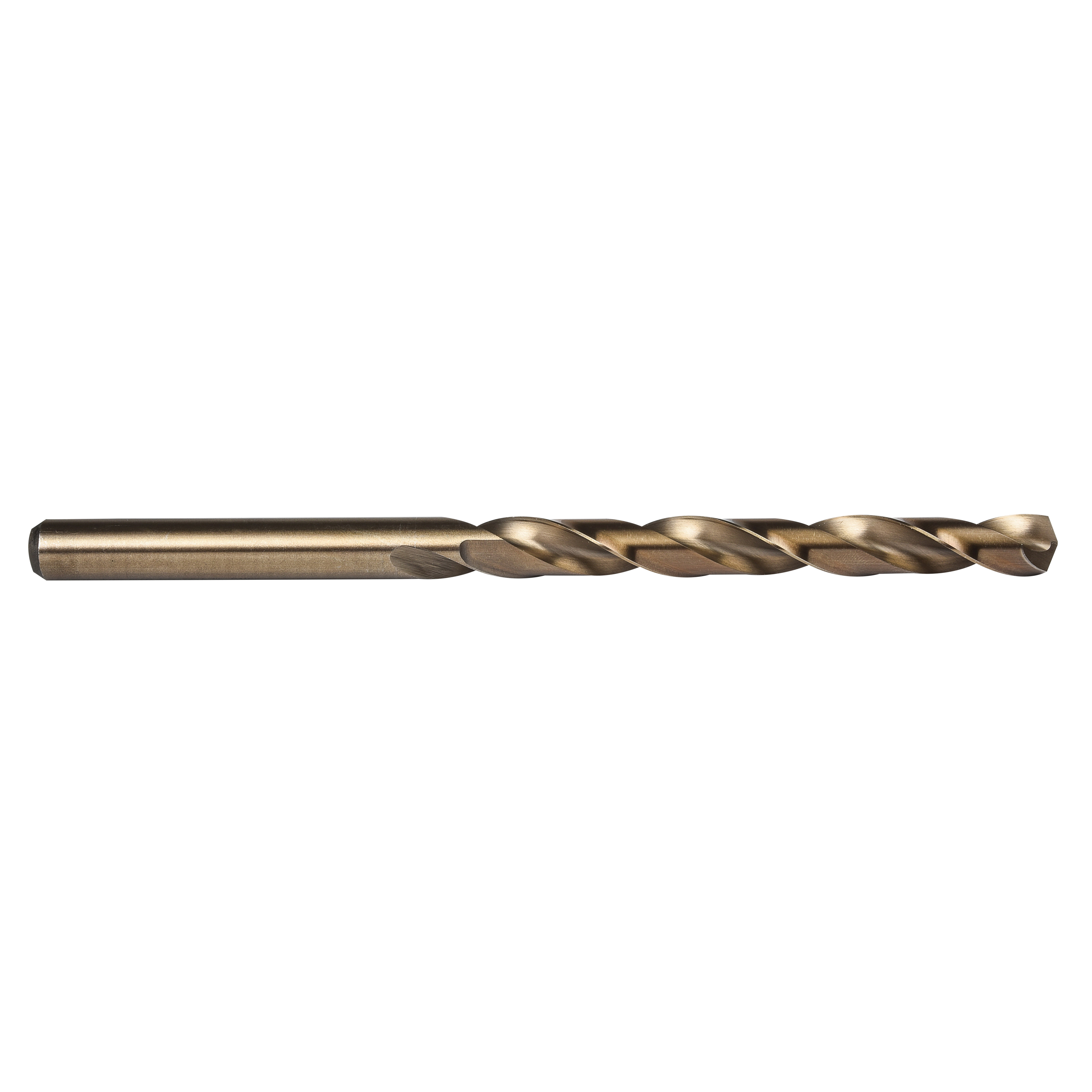

Precision Twist Drill 051316 M51CO Heavy Duty Long Length Taper Length Drill, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 6-1/8 in OAL, HSS-E, Bronze

UPC: 086071513168
UNSPSC: 23241606
Manufacturer PN: 051316
$15.60 EA
Factory Order
Estimated to ship in 14 days
QTY:


Precision Twist Drill Taper Length Drill, Heavy Duty Long Length, Series: M51CO, 1/4 in Drill Size - Fraction, 0.25 in Drill Size - Decimal Inch, 6-1/8 in Overall Length, 6XD Cutting Depth, 2 Flutes, Spiral Flute, 3-3/4 in Flute Length, 1/4 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened Steel, Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite and Unalloyed Titanium

  • Features

  • Low thrust design heavy duty self-centering split point for easier penetration
  • Cobalt base material with bronze oxide for wear resistance and lubricity
  • Spiral flutes are constructed with a higher flute angle to remove chips more easily
  • Web-thinned
  • No coolant channel

Specifications

ApplicationFor general drilling applications
Type Heavy Duty Long Length
Series M51CO
Drill Size - Fractio 1/4 in
Drill Size - Decimal 0.25 in
Overall Length 6-1/8 in
Cutting Depth 6XD
Number of Flutes 2
