Union Butterfield UTD 923 11/32X3/8

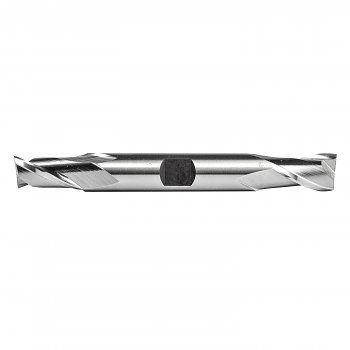

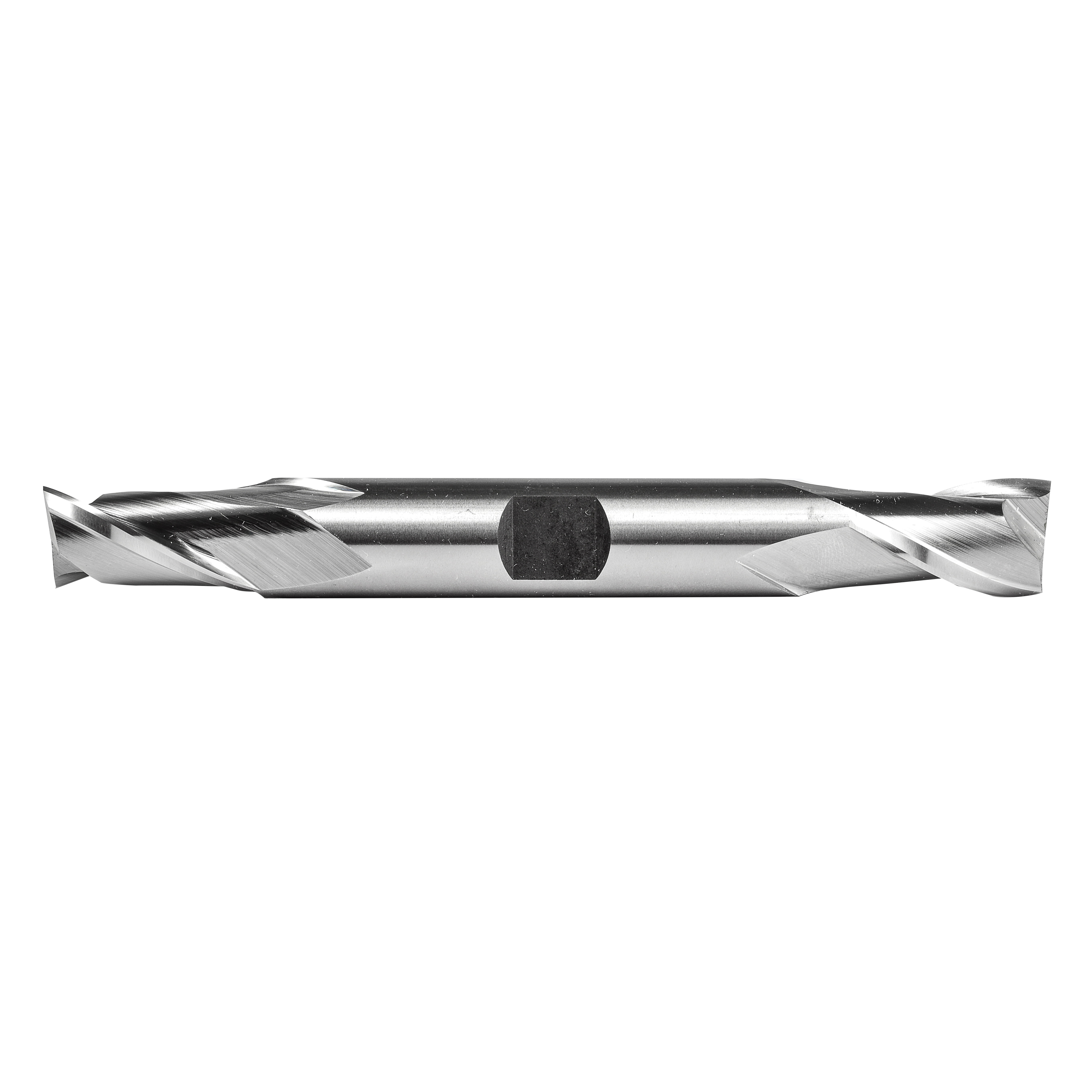

Union Butterfield 5110371 923 Center Cutting Double End Regular Length Square End End Mill, 11/32 in Dia Cutter, 9/16 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Bright
Invoice description:
End Mill Rh 2 Flt Hs Dbl Utd 5110371 5110371
In stock
(1)
Union Butterfield End Mill, Center Cutting Double End Regular Length Square End, Series: 923, 11/32 in Diameter Cutter, 3-1/2 in Overall Length, 9/16 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS, Bright
Features
- High speed steel provides good wear resistance, it is commonly used for general purpose applications on both ferrous and nonferrous materials
- Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
- Weldon shanks feature a round shank with one of more flats machined into the side for easy indexing and alignment
- Bright provides a smooth, polished finish on the tool, it increases chip flow in softer materials such as aluminum, wood and plastic
- For use with aluminum/aluminum alloys, cast iron, steel/steel alloys, titanium/titanium alloys compatible material
- +0.003 tolerance
Specifications
ApplicationFor slot milling and ramping operations
Cutter Diameter11/32 in
Cutting DirectionRight Hand
FinishBright
Flute TypeSpiral
Helix Angle30 deg
Length of Cut9/16 in
MaterialHSS
Number of Flutes2
Overall Length3-1/2 in
Series923
Shank Diameter3/8 in
Shank TypeWeldon Flat
TypeCenter Cutting Double End Regular Length Square End
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
