Williams WMS 1248

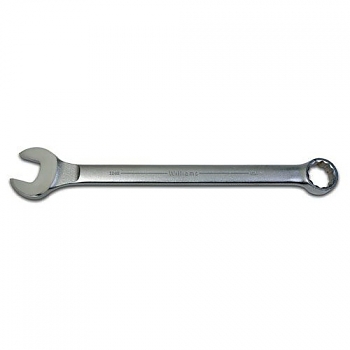

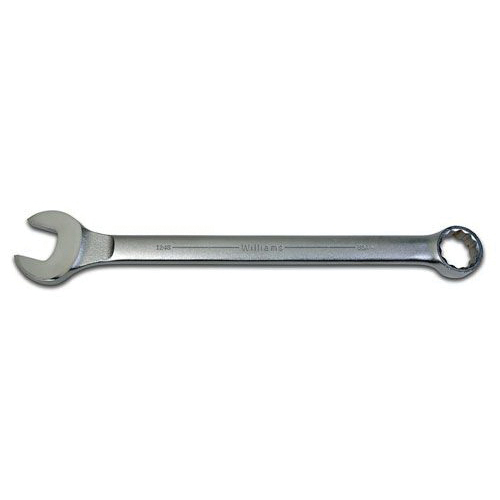

Williams JHW1248 SUPERCOMBO SUPERTORQUE Combination Wrench, 1-1/2 in, 12 Points, 20-1/32 in OAL, Satin Chrome

Invoice description: Wrench Combination 1-1/2 15 Deg-long Pattern Ol

UPC: 662459900760
UNSPSC: 27111713
Manufacturer PN: JHW1248
$118.00 EA
Factory Order
Estimated to ship in 8 days
QTY:


Williams Combination Wrench, Series: SUPERCOMBO SUPERTORQUE, Measurement System: Imperial, Standard Wrench, 1-1/2 in Wrench Opening, 12 Points, 20-1/32 in Overall Length, 3-3/16 in Open End Width, 11/16 in Open End Thickness, 2-3/16 in Box End Width, 7/8 in Box End Thickness, Satin Chrome

  • Features

  • SUPERCOMBO open end has specially designed grooves that direct wrench force away from fastener corners
  • SUPERTORQUE box opening design allows application of higher torque without rounding or deforming hex fastener points
  • No contact is made at the corners, instead wrenching forces are placed on the flat surfaces behind the points
  • Meets or exceeds aerospace specification AS 954 for 12-point fasteners to provide accurate torque/tension relationship for precision application
  • May be used on all common hex (6-point) fasteners with considerable advantage over conventional box end wrenches to increase both hand tool flexibility and economy
  • Box and open end openings are identica

Specifications

ApplicationFor use on all common hex point fasteners
Box End Thickness7/8 in
Box End Width2-3/16 in
Finish/CoatingSatin Chrome
Measurement SystemImperial
Number of Points12
Open End Thickness11/16 in
Open End Width3-3/16 in
Overall Length20-1/32 in
SeriesSUPERCOMBO SUPERTORQUE
Wrench Opening1-1/2 in
Wrench TypeStandard

Additional Information

Standards/ApprovalANSI B107.6|SAE AS 954|CSA Approved
Country of OriginUS
