YG-1 YG1 17598TC

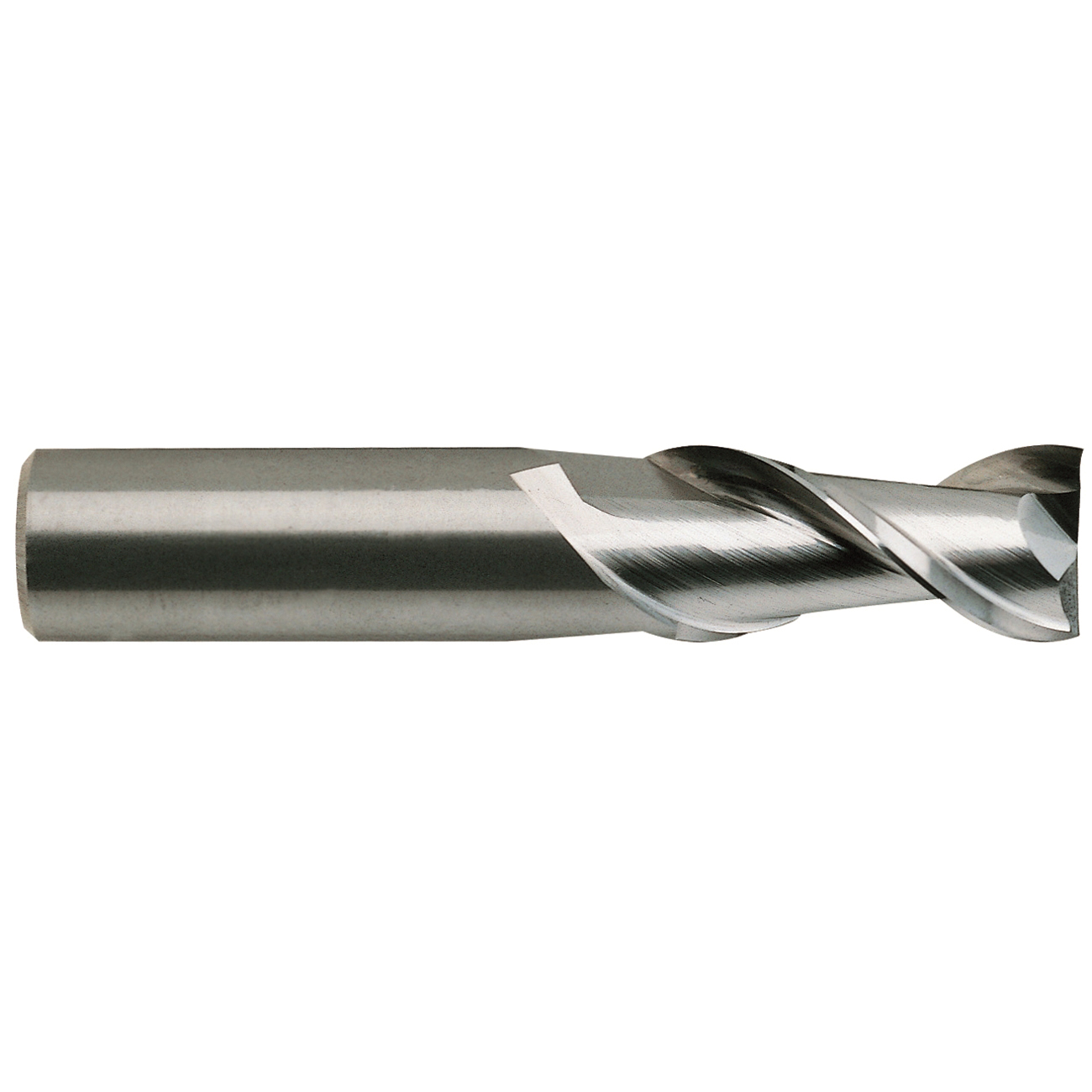

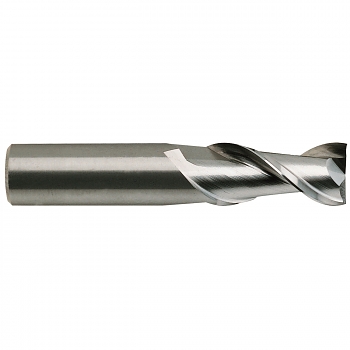

YG-1 Square End Mill, Banshee Center Cut Imperial Regular Length, Series: E5253 ALU-POWER, 3/4 in Diameter Cutter, 4 in Overall Length, 1-1/2 in Length of Cut, 2 Flutes, Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 42 deg Helix Angle, Weldon Flat Shank, Micrograin Carbide, TiCN Coated

• Features

• High velocity milling of aluminum and other non-ferrous materials
• Excellent plunging capabilities
• Improved surface roughness cylindrical margin which is controlled tightly
• Maximum metal removal rate
• Superior chip evacuation
• Mirror face excellent surface finish
• Special designed geometry with high rigidity cutting edge
• Excellent chip removal higher rake angle, higher helix angle (42 deg) and bigger chip pocket

Specifications
