Apex APX 10MM23-D

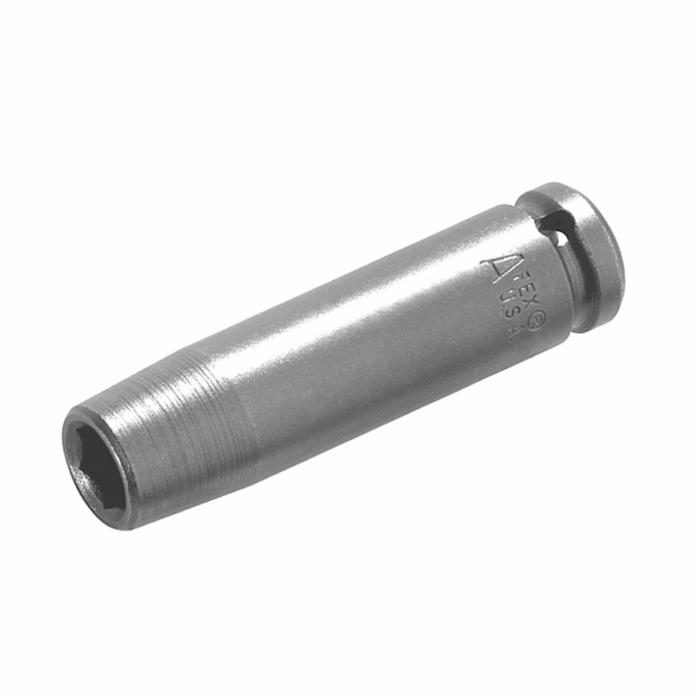

Apex 10MM23-D Standard Length Socket, Metric, 3/8 in Double Hex/Female Square Drive, 10 mm Socket, 6 Points
Factory Order
Apex Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Double Hex/Female Square Drive, 3/8 in Drive, 10 mm Socket, 50.8 mm Overall Length, 6.4 mm Opening Depth, 19.1 mm Drive End Width, 16.8 mm Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width19.1 mm
Drive Size3/8 in
Drive TypeDouble Hex/Female Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth6.4 mm
Overall Length50.8 mm
Socket End Width16.8 mm
Socket Size10 mm
TypeStandard Length
