Apex APX 11MM25

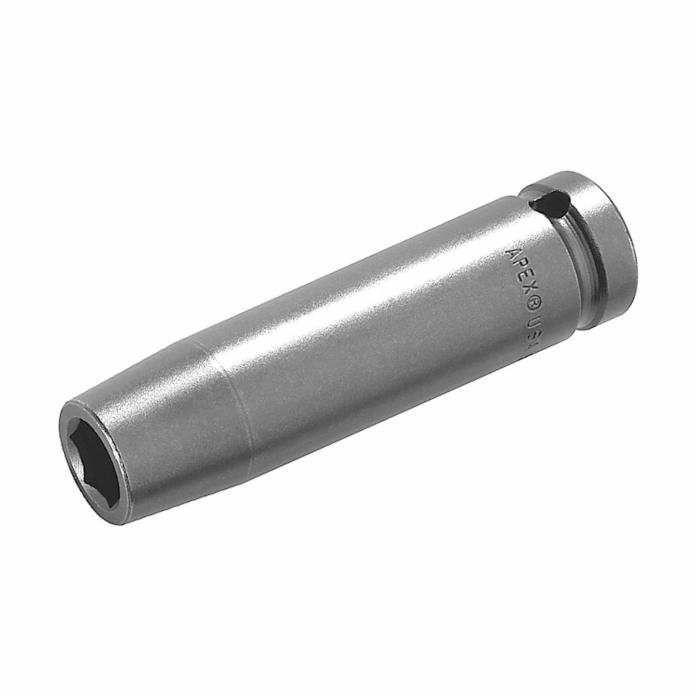

Apex 11MM25 Long Length Socket, Metric, 1/2 in Female Square Drive, 11 mm Socket, 6 Points

UPC: 697099197539
UNSPSC: 27111704
Manufacturer PN: 11MM25
$26.58 EA
Factory Order
QTY:


Apex Socket, Long Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 1/2 in Drive, 11 mm Socket, 57.1 mm Overall Length, 7.2 mm Opening Depth, 23.8 mm Drive End Width, 17.5 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width23.8 mm
Drive Size1/2 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth7.2 mm
Overall Length57.1 mm
Socket End Width17.5 mm
Socket Size11 mm
TypeLong Length
