Cleveland CLEV C71211

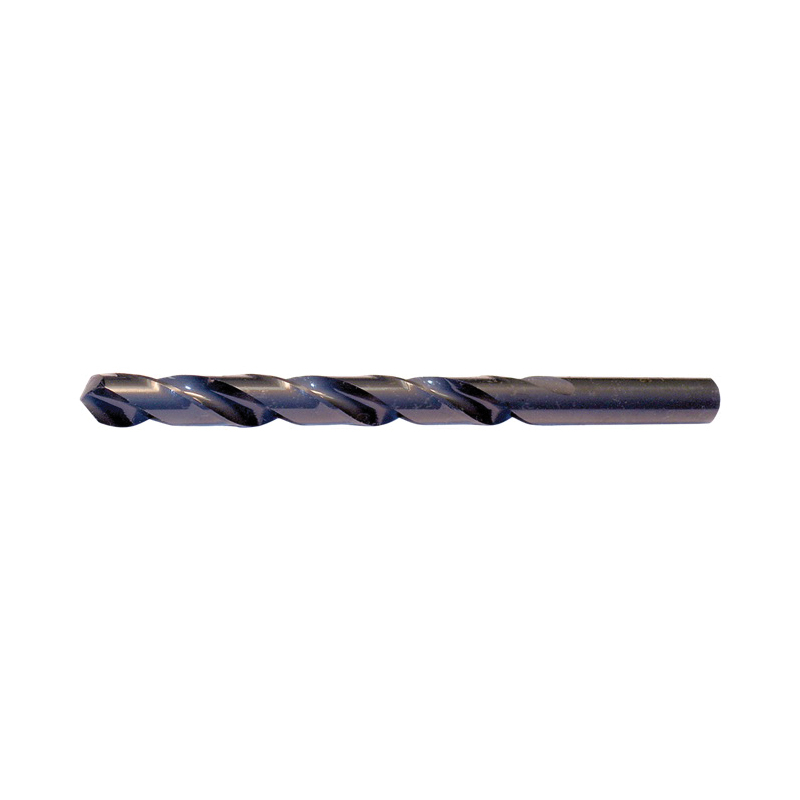

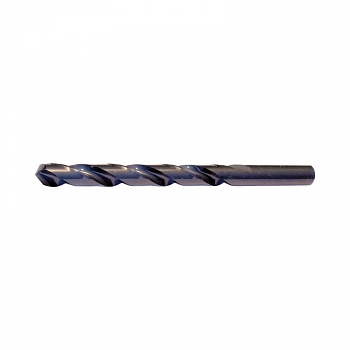

Cleveland CLE-MAX C71211 2001G General Purpose Jobber Length Drill Bit, 1.55 mm Drill - Metric, 0.061 in Drill - Decimal Inch, 118 deg Point, HSS-E, Steam Oxide
Invoice description:
1.55mm Hs Job Dr.blk 200 1g
In stock
(4)
Cleveland CLE-MAX Jobber Length Drill Bit, General Purpose, Series: 2001G, Metric/Imperial, 1.55 mm Drill - Metric, 0.061 in Drill - Decimal Inch, 43 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Right Spiral Flute, 20 mm Flute Length, 1.55 mm Dia x 23 mm L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS-E Cutting Edge, No Through Coolant, HSS-E, Steam Oxide, Applicable Materials: Aluminum, Cast Iron, Copper Alloy and Low Carbon Steel
Features
- Improved geometry
- Premium substrate for better wear life
Specifications
Applicable MaterialsAluminum, Cast Iron, Copper Alloy and Low Carbon Steel
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.061 in
Drill Size - Metric1.55 mm
FinishSteam Oxide
Flute Length20 mm
Flute TypeRight Spiral
MaterialHSS-E
Number of Flutes2
Overall Length43 mm
Point Angle118 deg
Point TypeRadial
Series2001G
Shank Size1.55 mm Dia x 23 mm L
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|ASME B94.11M|DIN 338
Country of OriginUS
