Apex APX 20MM25

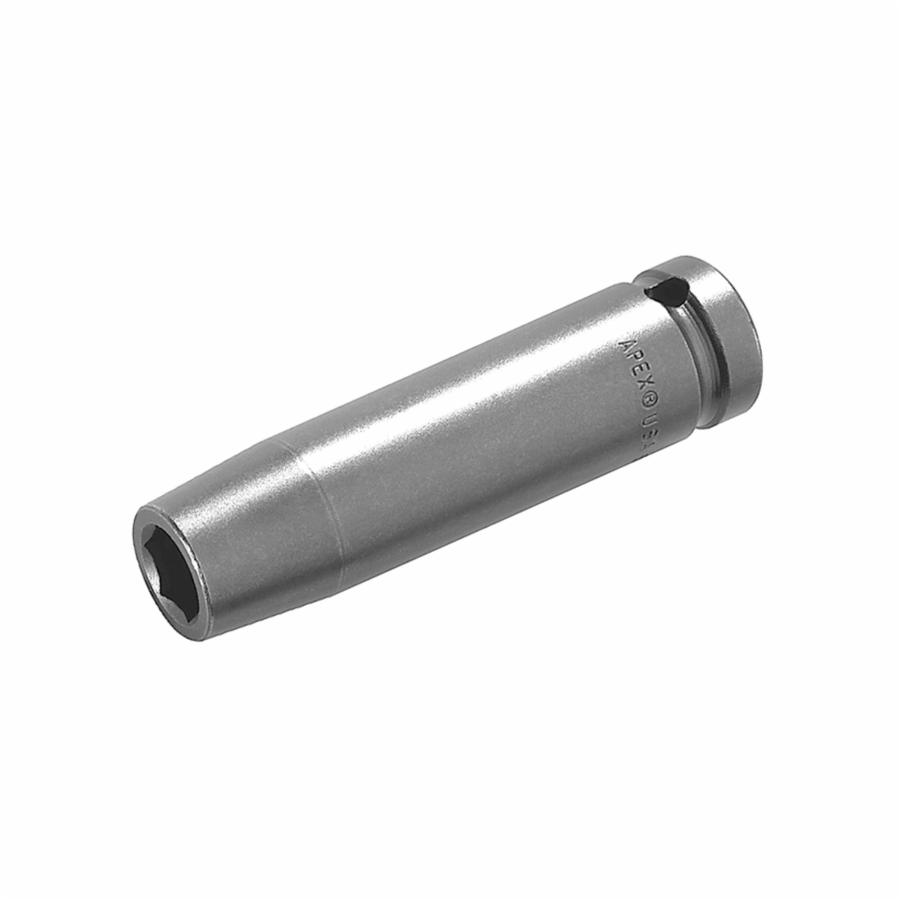

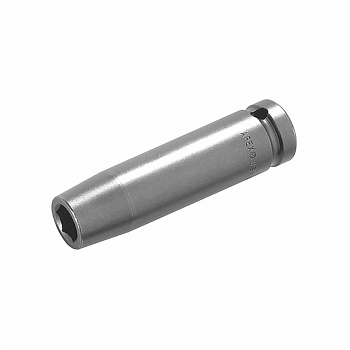

Apex 20MM25 Long Length Socket, Metric, 1/2 in Female Square Drive, 20 mm Socket, 6 Points

UPC: 697099232667
UNSPSC: 27111704
Manufacturer PN: 20MM25
$76.12 EA
Factory Order
QTY:


Apex Socket, Long Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 1/2 in Drive, 20 mm Socket, 57.1 mm Overall Length, 11.9 mm Opening Depth, 31.7 mm Drive End Width, 31.7 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width31.7 mm
Drive Size1/2 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth11.9 mm
Overall Length57.1 mm
Socket End Width31.7 mm
Socket Size20 mm
TypeLong Length
