Apex APX 24MM47

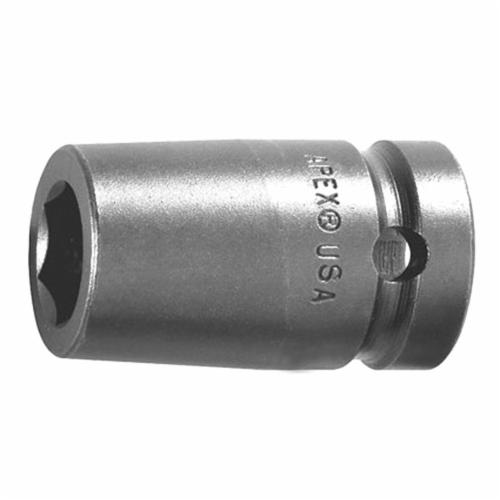

Apex 24MM47 Standard Length Socket, Metric, 3/4 in Female Square Drive, 24 mm Socket, 6 Points

UPC: 697099239215
UNSPSC: 27111704
Manufacturer PN: 24MM47
$63.36 EA
Factory Order
QTY:


Apex Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 3/4 in Drive, 24 mm Socket, 51 mm Overall Length, 15.9 mm Opening Depth, 34.9 mm Drive End Width, 34.9 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width34.9 mm
Drive Size3/4 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth15.9 mm
Overall Length51 mm
Socket End Width34.9 mm
Socket Size24 mm
TypeStandard Length
