Apex APX 7MM03

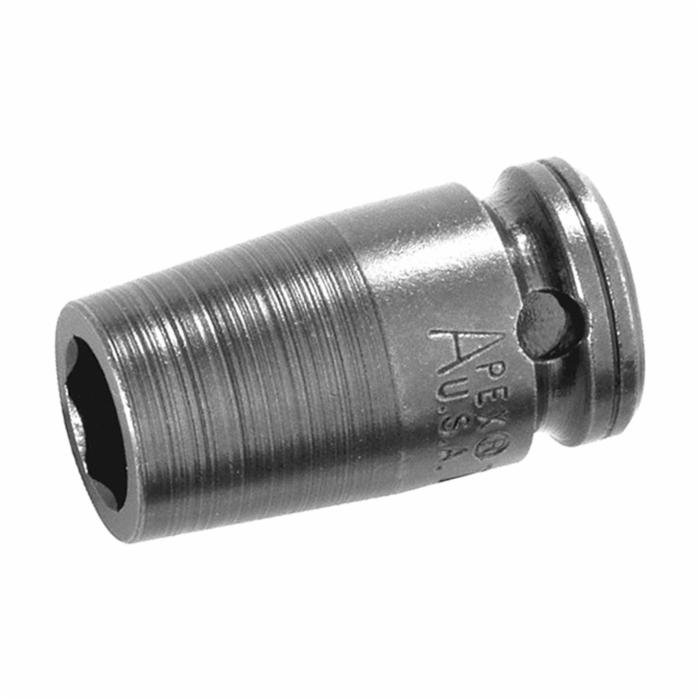

                    Apex 7MM03 Short Length Socket, Metric, 3/8 in Female Square Drive, 7 mm Socket, 6 Points

                Invoice description:
                    Sckt 3/8 Fmale Sq Drv 7m                     M

            Apex Socket, Short Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 3/8 in Drive, 7 mm Socket, 22.2 mm Overall Length, 3 mm Opening Depth, 19.1 mm Drive End Width, 11.1 mm Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
 - High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
 - Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
 - Better and more consistent fit to fasteners leads to better torque transfer

Specifications
ApplicationFor automotive and assembly of appliances
                                                                                                                                                                                        Drive End Width19.1 mm
                                                                                                                    Drive Size3/8 in
                                                                                                                    Drive TypeFemale Square
                                                                                                                    Impact RatedYes
                                                                                                                    MaterialHigh Carbon Alloy Steel
                                                                                                                    Measurement SystemMetric
                                                                                                                    Number of Points6
                                                                                                                    Opening Depth3 mm
                                                                                                                    Overall Length22.2 mm
                                                                                                                    Socket End Width11.1 mm
                                                                                                                    Socket Size7 mm
                                                                                                                    TypeShort Length
                                                                                                Additional Information
Standards/ApprovalASME B107.112
                                                                                                    Country of OriginUS
