Apex APX 8440-D

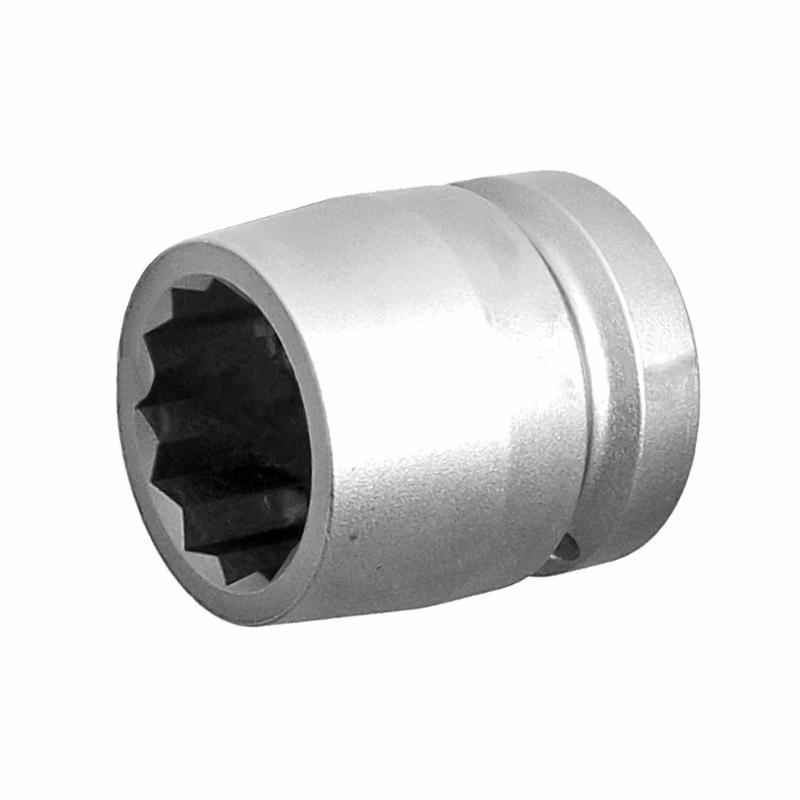

Apex 8440-D Standard Length Thinwall Socket, Imperial, 1 in Double Hex/Female Square Drive, 1-1/4 in Socket, 12 Points
Invoice description:
Sckt 1 Fmale Sq Drv 1 1/ 4
Factory Order
Apex Socket, Standard Length Thinwall, Yes Impact Rated, Measurement System: Imperial, Double Hex/Female Square Drive, 1 in Drive, 1-1/4 in Socket, 2-1/8 in Overall Length, 13/16 in Opening Depth, 2 in Drive End Width, 1-13/16 in Socket End Width, 12 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width2 in
Drive Size1 in
Drive TypeDouble Hex/Female Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemImperial
Number of Points12
Opening Depth13/16 in
Overall Length2-1/8 in
Socket End Width1-13/16 in
Socket Size1-1/4 in
TypeStandard Length Thinwall
Additional Information
Standards/ApprovalASME B107.113
Country of OriginUS
