Apex APX SF-14MM15

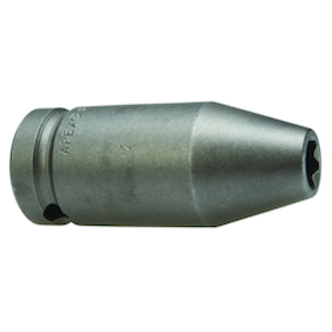

Apex SF-14MM15 Non-Magnetic Standard Length Socket, 1/2 in Square/Surface Drive, 14 mm Hex Socket, 6 Points
Invoice description:
Sckt 1/2 Fmale Sq Drv 14 M
Factory Order
Apex Socket, Non-Magnetic Standard Length, Impact Rated: Yes, Measurement System: Metric, Square/Surface Drive, 1/2 in Drive, Hex Socket, 14 mm Socket, 38.1 mm Overall Length, 11.1 mm Opening Depth, 23.8 mm Drive End Width, 22.2 mm Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated meets or exceeds proof torque requirement for impact standard ASME B107.112
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows Apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor compensating for imperfect alignment between the tool and fastener
Drive End Width23.8 mm
Drive Size1/2 in
Drive TypeSquare/Surface
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth11.1 mm
Overall Length38.1 mm
Socket End Width22.2 mm
Socket Size14 mm
Socket TypeHex
TypeNon-Magnetic Standard Length
Additional Information
Standards/ApprovalASME B107.17, B107.112|DIN 475
Country of OriginUS
