Starrett LSS 178MA

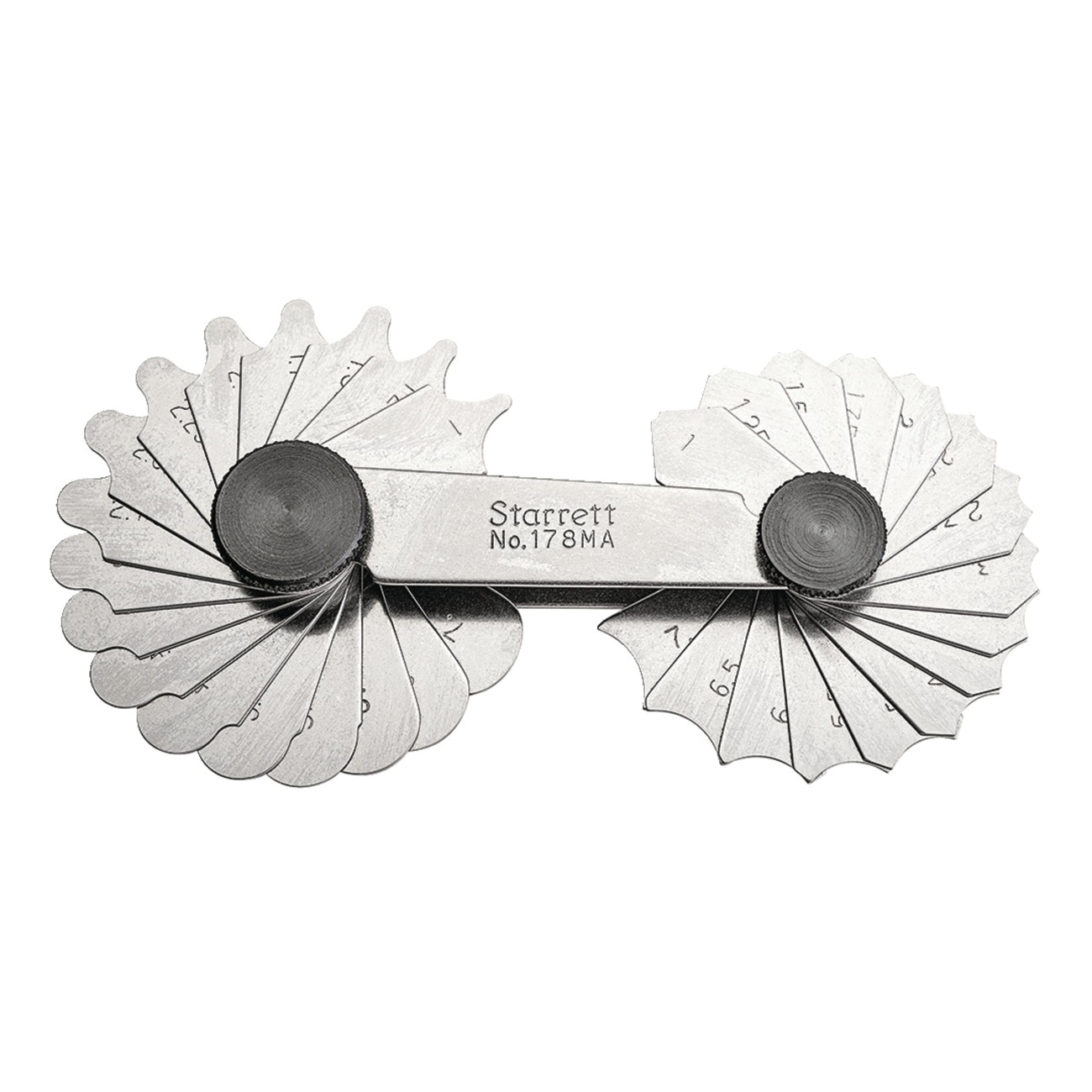

Starrett Fillet/Radius Gage, Series: 178M, 1 to 3 mm Measuring, Graduations: 0.25 mm, 34 Leaves, Stainless Steel, 4-1/64 in L x 31/64 in W x 2-3/ 64 in H Dimensions

• Features

• Very useful for tool and diemakers, machinists, screw machine operators and patternmakers to lay out and check radii of tools, dies, and patterns
• Made of nicely finished, high quality steel
• 1-7 mm concave and convex reading
• Any one of the leaves can be securely locked in position by a locking device
• Each gage has leaves for measuring both concave and convex radii, with each leaf stamped with the radius size
• Millimeter system of measurement
• 1 - 3 mm, 3 - 7 mm measuring range
• 0.25 mm, 0.5 mm graduations

Specifications

Documents

• Full Engineering Drawing
