Starrett® LSS 196B1 W/SLC

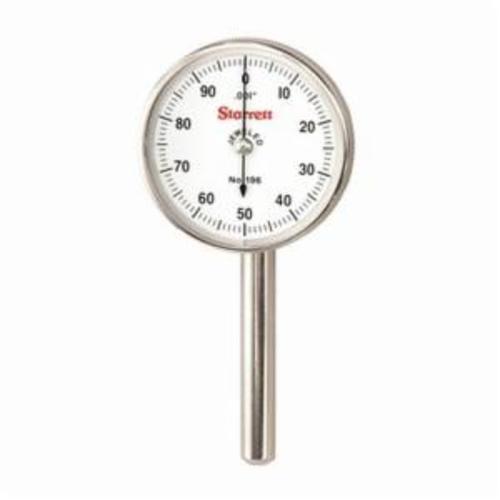

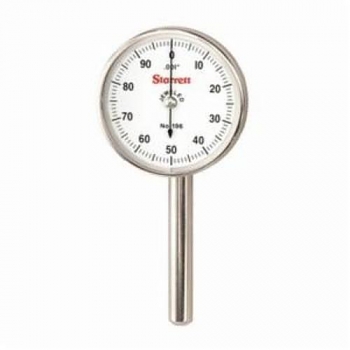

Starrett® Dial Indicator, Back Plunger, Series: 196 Series, 0.2 in, 0 to 100 Dial, Graduations: 0.001 in, 1-7/16 in Dial, White Dial, 1/4 in Tip, Stainless Steel

• Features

• 1/4 in Dia shank
• Accurate and reliable
• Simple to operate
• Rugged with few moving parts
• Smooth in operation
• Universal back plunger dial indicators
• For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model

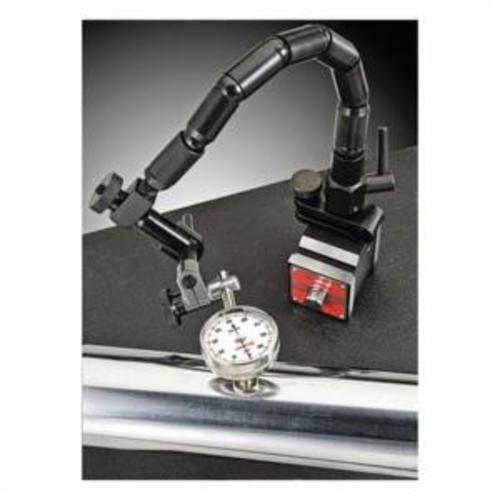

• Then the contact should be brought against the work with enough pressure to give the hand one full turn
• Set the hand at zero by rotating the dial with the knurled bezel
• This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation

Specifications

Documents

• Full Engineering Drawing
