Starrett LSS 196MA1Z
Starrett 196MA1Z 196 Series Universal Back Plunger Dial Indicator, 5 mm, 0 to 100 Dial Reading, 0.02 mm, 1.45 in Dial
Invoice description:
Universal Back-plunger D Ia L Test Indicators
Factory Order
Starrett Dial Indicator, Universal Back Plunger, Series: 196 Series, 5 mm, 0 to 100 Dial, Graduations: 0.02 mm, 1.45 in Dial, Yellow Dial, Satin Chrome
Features
- One of the most versatile indicators available
- Accurate and reliable
- Simple to operate
- Rugged, with few moving parts
- Smooth in operation
- For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model
- Then the contact should be brought against the work with enough pressure to give the hand one full turn
- Set the hand at zero by rotating the dial with the knurled bezel
- This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation
- 6.3 mm shank diameter
Specifications
Dial ColorYellow
Dial Reading0 to 100
Dial Size1.45 in
FinishSatin Chrome
Graduations0.02 mm
Measuring Range5 mm
Series196 Series
TypeUniversal Back Plunger
Additional Information

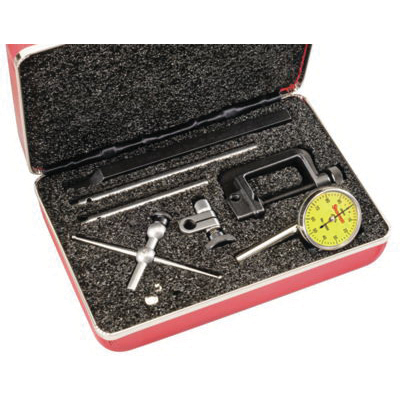

Includes(3) Contact Points, Adapter, Clamp, Tool Post Holder, Snug, Hole Attachment and Case
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
