Starrett® LSS 25-109J

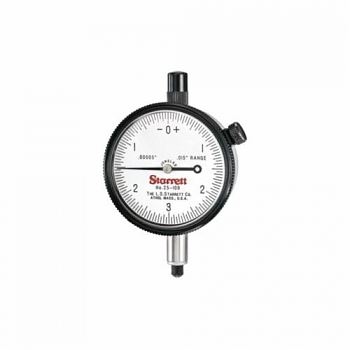

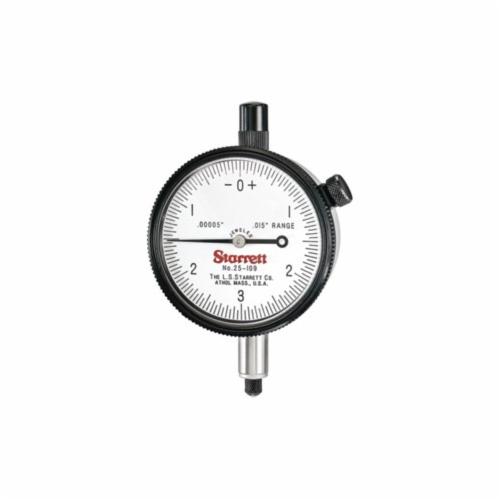

Starrett® 25-109J 25 Series AGD Group 2 Continuous Dial Dial Indicator, 0.015 in, 0 to 3 to 0 Dial Reading, 0.00005 in, 2-1/4 in Dial, 13/64 in Dia Tip
Starrett® Dial Indicator, AGD Group 2 Continuous Dial, Series: 25 Series, 0.015 in, 0 to 3 to 0 Dial, Graduations: 0.00005 in, 2-1/4 in Dial, White Dial, 13/64 in Dia Tip, Stainless Steel, Satin/Eggshell
Features
- Rugged and simple unit construction with a "universally fitting" design
- Sharp bezel serrations for positive grip
- Unbreakable crystal
- Hardened stainless steel stem
- Light but sturdy, no-glare satin finish on case
- Hardened stainless steel rack, gears, spindle and pinions
- Massive bridge for rigid bearing support
- Non-reflecting white eggshell finish on dial
- With jewel bearings and lug-on-center back mounting
- 0.006 in range one revolution
Specifications
ApplicationFor tool and die shops, machine shops and tool rooms
Type AGD Group 2 Continuous Dial
Series 25 Series
Measuring Range 0.015 in
Dial Reading 0 to 3 to 0
Graduations 0.00005 in
Dial Size 2-1/4 in
Dial Color White
Tip Size 13/64 in Dia
Material Stainless Steel
