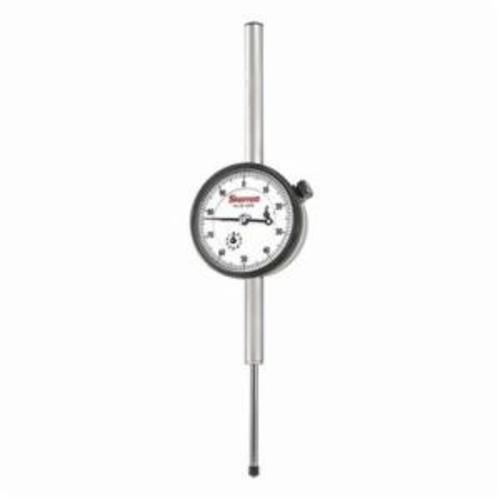

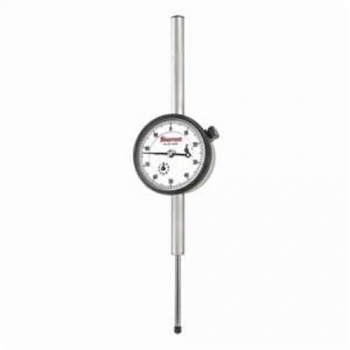

Starrett LSS 25-2041J WFB

Starrett 25-2041J WFB 25 Series Dial Indicator With Flat Back, 2 in, 0 to 100 Dial Reading, 0.001 in, 2-19/64 in Dial, 13/64 in Tip

UPC: 049659568059
UNSPSC: 41111630
Manufacturer PN: 25-2041J WFB
$629.20 EA
Factory Order
QTY:


Starrett Dial Indicator, Series: 25 Series, 2 in, 0 to 100 Dial, Graduations: 0.001 in, 2-19/64 in Dial, White Dial, 13/64 in Tip, Hardened Stainless Steel, Satin

  • Features

  • Rugged and simple unit construction with a universally fitting design
  • The gear unit is constructed of a massive single bridge and plate assembly with a hardened stainless steel gear train
  • All gear trains are fully jeweled for sensitivity, smoothness and life
  • The case is light but sturdy, with a hardened, precision stainless steel rack that rides in bronze bushings, size Groups 0 and 1 indicators are of similar construction but smaller in size
  • Hardened stainless steel bottom stems can be held in fixtures without cramping rack action
  • Easy readability with the best, balanced style of graduation and number combination
  • Balanced and tapered hands are easy-to follow
  • Special non-shock mechanism is ideal for when an indicator may be subjected to repeated and excessive shocks
  • Sharp bezel serrations for positive grip
  • Unbreakable crystal, 3/8 in Dia stem

Specifications

ApplicationFor tool and die shops, machine shops and tool rooms
Dial ColorWhite
Dial Reading0 to 100
Dial Size2-19/64 in
FinishSatin
Graduations0.001 in
MaterialHardened Stainless Steel
Measuring Range2 in
Series25 Series
Tip Size13/64 in
