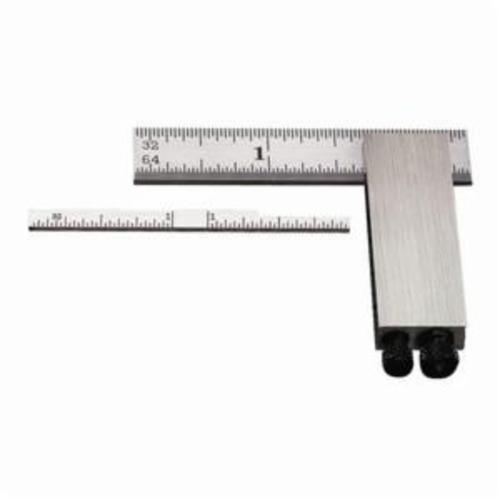

Starrett® LSS 453C

Starrett® 453C Diemakers Square With Standard, Narrow Blades, 2-1/2 in L x 1/2 in W x 1/16 in THK, 32nds - 64ths Graduation, 10 deg, 1-15/16 in Tongue, Steel

UPC: 049659523478
UNSPSC: 27111803
Manufacturer PN: 453C
$300.30 EA
Factory Order
QTY:


Starrett® Diemakers Square, Series: 453, 2-1/2 in L x 1/2 in W x 1/16 in THK Size, Graduations: 32nds - 64ths, 10 deg Measuring Angle, Measuring System: Imperial, 1-15/16 in Tongue, 5/8 in Width, 9/32 in Thickness, Steel

  • Features

  • The sliding blades of this tool and diemakers' square can be adjusted at an angle upto approximately 10 deg with the beam for measuring the clearance in dies
  • The blade can be held in position by tightening the clamping screw
  • Head and blades are hardened and ground
  • The inch reading blade is graduated on one side, upper edge in 32nds, lower edge in 64ths
  • Graduated blade, 32nds of an inch on one side and 64ths on other and it is 5/32 in wide over a length of 1-5/8 in and cut away at one end to a width of 3/32 in
  • The narrow graduated blade has 32nds graduation on one side and 64ths on the other, it is 5/32 in wide over a length of approximately 1-5/8 in and cut away at one end to a width of 3/32 in

Specifications

Series 453
Size 2-1/2 in L x 1/2 in W x 1/16 in THK
Graduations 32nds - 64ths
Measuring Angle 10 deg
Measuring System Imperial
Tongue Size 1-15/16 in
Width 5/8 in
Thickness 9/32 in
Material Steel
