Starrett LSS 453EZ

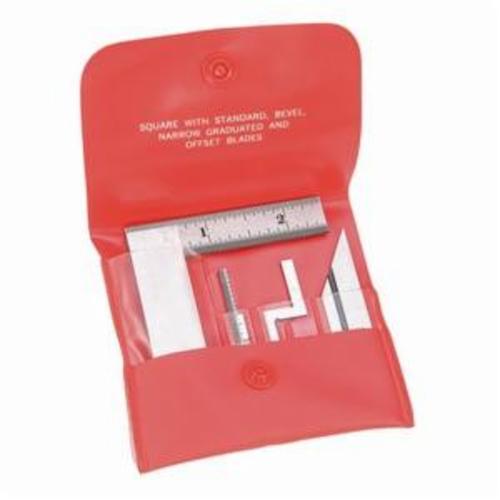

Starrett 453EZ Diemakers Square With Standard, Bevel, Narrow and Offset Blades, 2-1/2 in L x 1/2 in W x 1/16 in THK, 32nds - 64ths Graduation, 10 deg, 1-15/16 in Tongue, Steel

UPC: 049659523515
UNSPSC: 27111803
Manufacturer PN: 453EZ
$544.84 EA
Factory Order
QTY:


Starrett Diemakers Square, Series: 453, 2-1/2 in L x 1/2 in W x 1/16 in THK Size, Graduations: 32nds - 64ths, 10 deg Measuring Angle, Measuring System: Imperial, 1-15/16 in Tongue, 5/8 in Width, 9/32 in Thickness, Steel

  • Features

  • The sliding blades of this tool and diemakers square can be adjusted at an angle upto approximately 10 deg with the beam for measuring the clearance in dies
  • The blade can be held in position by tightening the clamping screw
  • Head and blades are hardened and ground
  • The inch reading blade is graduated on one side, upper edge in 32nds, lower edge in 64ths
  • The bevel blade is approximately 2-1/2 in L x 1/2 in W and is beveled to 30 deg on one end and 45 deg on the other

Specifications

Graduations32nds - 64ths
MaterialSteel
Measuring Angle10 deg
Measuring SystemImperial
Series453
Size2-1/2 in L x 1/2 in W x 1/16 in THK
Thickness9/32 in
Tongue Size1-15/16 in
Width5/8 in
