Starrett® LSS 453MA

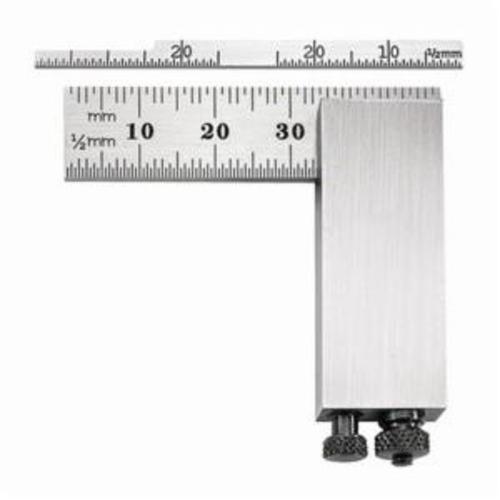

Starrett® 453MA Diemakers Square With Standard Graduated Blade, 50 mm L x 12.7 mm W x 1.41 mm THK, mm and 1/2 mm Graduation, 10 deg, 49.21 mm Tongue, Steel
Factory Order
Starrett® Diemakers Square, 50 mm L x 12.7 mm W x 1.41 mm THK Size, Graduations: mm and 1/2 mm, 10 deg Measuring Angle, Measuring System: Metric, 49.21 mm Tongue, 15.88 mm Width, 7.14 mm Thickness, Steel
Features
- The sliding blades of this tool and diemakers' square can be adjusted at an angle upto approximately 10 deg with the beam for measuring the clearance in dies
- The blade can be held in position by tightening the clamping screw
- Head and blades are hardened and ground
Specifications
Size 50 mm L x 12.7 mm W x 1.41 mm THK
Graduations mm and 1/2 mm
Measuring Angle 10 deg
Measuring System Metric
Tongue Size 49.21 mm
Width 15.88 mm
Thickness 7.14 mm
Material Steel
